25mm Set Screw Mounted Take Up Bearing|High Temp Bearings

Setscrew Locking Take Up Mounted Ball Bearing

$19.83

This product has a minimum quantity of 2

Qty:

checkbox icon Delivery in 1-3 days with 2-day shipping.

CAD

Specifications:

Description

Can handle light to moderate loads, moderate speed, and vibration. All bearings are equipped with close tolerance metal shields, an internal NBR contact seal (B-type), and factory lubricated with an ISO VG 100 PAO base oil, NLGI No. 2, lithium-stearate thickened grease.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		100395
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		UC
Construction		Take Up
Shaft Size		25mm
Sealing		Standard
End Cap		None
Collar		Setscrew
Greasable	Re-lubrication	Greasable

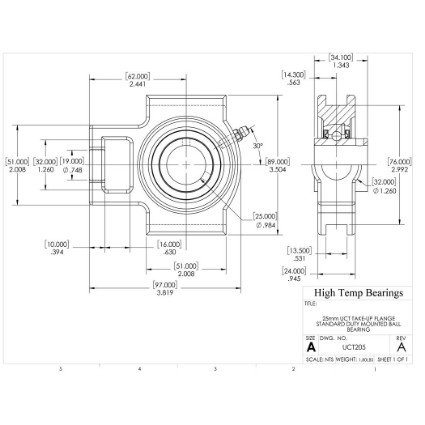

Dimensions

Attribute name		Attribute value
Bore (in)		0.9843
H (in)		3.539
L (in)		3.819
J (in)		2.79
A2 (in)		0.945
A1 (in)		0.532
N (in)		0.748
H1 (in)		2.992
H2 (in)		2.79
A (in)		2.449
E (in)		0.63
S (in)		0.563
B (in)		1.343
N1 (in)		1.26

Mass

Attribute name		Attribute value
Weight(lbs)		1.8

Associated Products

Attribute name		Attribute value
Bearing Insert		UC205
Housing		T205
