1-1/2" Medium Duty Mounted Pillow Block Bearing|High Temp Bearings

Medium Duty Setscrew Locking Pillow Block Mounted Ball Bearing

$137.50

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Can handle light to heavy loads, moderate speed, and vibration. All bearings are equipped with close tolerance metal shields, an internal NBR contact seal (B-type), and factory lubricated with an ISO VG 100 PAO base oil, NLGI No. 2, lithium-stearate thickened grease.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		100879
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		UCX
Construction		Pillow Block
Shaft Size		1-1/2"
Sealing		Standard
End Cap		None
Collar		Setscrew
Greasable	Re-lubrication	Greasable

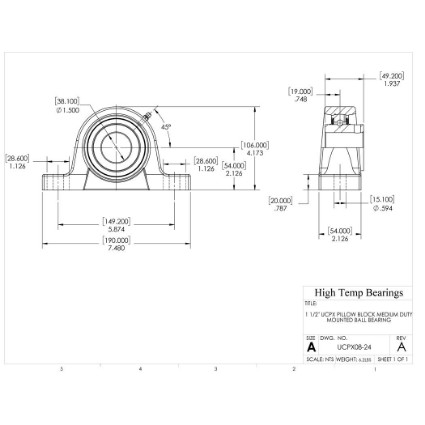

Dimensions

Attribute name		Attribute value
Bore (in)		1.5
H (in)		2.126
L (in)		7.483
J (in)		5.874
N (in)		0.595
H1 (in)		0.787
H2 (in)		4.173
A (in)		2.126
S (in)		0.748
B (in)		1.937
N1 (in)		1.126

Mass

Attribute name		Attribute value
Weight(lbs)		6.2

Mounting Information

Attribute name		Attribute value
Bolt		1/2

Associated Products

Attribute name		Attribute value
Bearing Insert		UCX08-24
Housing		P209H
