5/8" 202 Mounted Set Screw Bearing Insert|High Temp Bearings

Picture of Standard Duty, Setscrew Locking, Ball Bearing Insert

Setscrew Locking Standard Duty Ball Bearing Insert

$8.16

This product has a minimum quantity of 4

Qty:

checkbox icon Delivery in 1-3 days with 2-day shipping.

CAD

Specifications:

Description

Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and installs into a standard duty housings.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		100475
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		UC
Shaft Size		5/8"
Collar		Setscrew
Greasable	Re-lubrication	Greasable
Construction		Self-Aligning

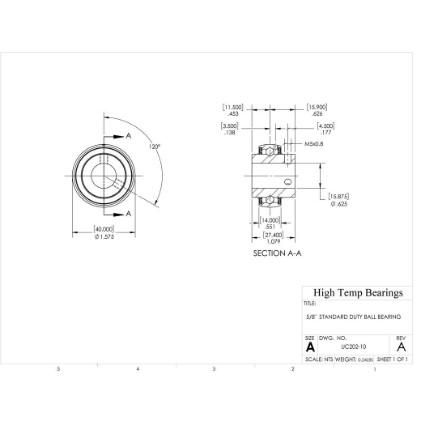

Dimensions

Attribute name		Attribute value
Bore (in)		0.625
D (in)		1.5748
B (in)		1.787
S (in)		0.4528
C (in)		0.5512
h (in)		0.1378
S1(in)		0.626
G (in)		0.1172
ds		10-32 UNF

Calculation Data

Attribute name		Attribute value
C (lb)	Dynamic Load Capacity	2151
C0 (lb)	Static Load Capacity	1056

Mass

Attribute name		Attribute value
Weight(lbs)		0.24

Safe Loads

Attribute name		Attribute value
Tmax (F)		248
Tmin (F)		-10
