Home
>
Mounted Ball Bearings
>
Food Grade Stainless Mounted Bearings
>
25mm IP69K Stainless Steel Hanger Mounted Food Bearing
Print Page
IP69K Stainless Steel Hanger Food Grade Bearing: SUCSHA205 IP69K
IP69K Stainless Steel Hanger Food Grade Bearing: SUCSHA205 IP69K

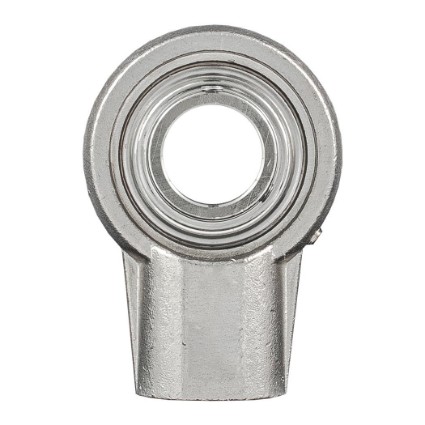

IP69K Stainless Steel Hanger Mounted Food Bearing
$134.99
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
MANUAL
Specifications:
Description
For moderate to heavy loads, speed, and vibration. All bearings are IP69K rated for dust tight protection, close range high pressure and temperature washdown or steam cleaning. Lubricated for life with a NSF H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminum Complex thickened grease to eliminate lubrication holes, grease zerks, and other potential areas for contamination intrusion. Ideal for food, poultry, meat, pharmaceutical manufacturing or any environment subject caustic washdown or regular temporary submersion. 304 Stainless steel housings provide excellent chemical and corrosion resistance capable of resisting many acids, fats and most food and beverage processing chemicals. They are also very strong and useful for carrying the high stress found near drives, belt and chain tensioners.
Attribute name
Attribute value
Product Information
Attribute name
Attribute value
Code
150321
Shaft Size
25mm
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA
Series
SUC-IP69K
Construction
Hanger
Sealing
IP69K
End Cap
None
Dimensions
Attribute name
Attribute value
Bore (in)
0.9843
H (in)
2.5197
L (in)
1.5748
H1 (in)
0.752
H2 (in)
3.8976
A (in)
2.7559
E (in)
1.3386
S (in)
0.7756
B (in)
0.563
Mass
Attribute name
Attribute value
Weight(lbs)
1.6
Mounting Information
Attribute name
Attribute value
Bolt
PF 3/4-14
Associated Products
Attribute name
Attribute value
Bearing Insert
SUC205 IP69K
Housing
SHA205
