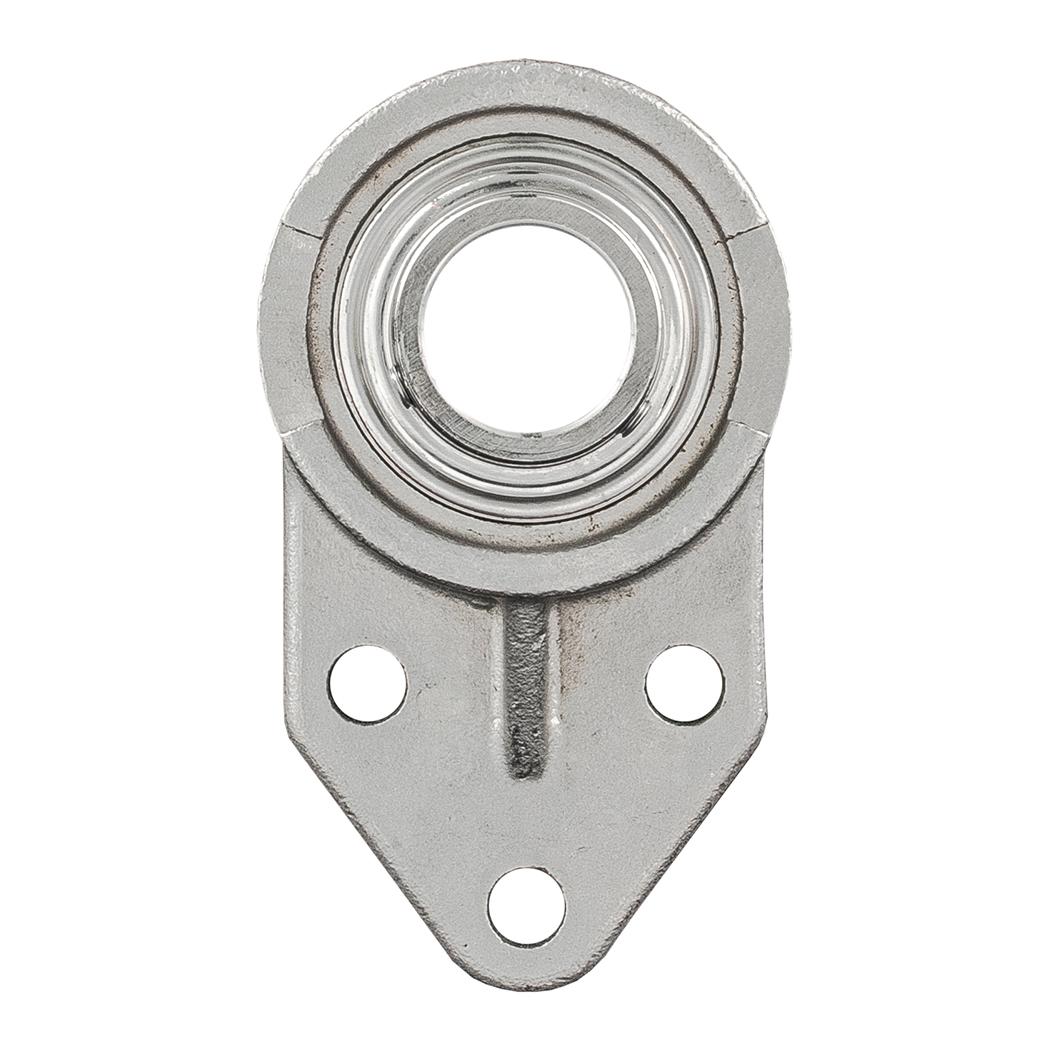

IP69K Stainless Steel 3 Bolt Bracket Food Grade Bearing: SUCFB207-20 IP69K

IP69K Stainless Steel 3 Bolt Bracket Food Grade Bearing: SUCFB207-20 IP69K

IP69K Stainless Steel 3 Bolt Bracket Mounted Food Bearing
$239.39
EA

checkbox icon This item typically ship in 1-4 weeks.

Specifications:
Description
For moderate to heavy loads, speed, and vibration. All bearings are IP69K rated for dust tight protection, close range high pressure and temperature washdown or steam cleaning. Lubricated for life with a NSF H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminum Complex thickened grease to eliminate lubrication holes, grease zerks, and other potential areas for contamination intrusion. Ideal for food, poultry, meat, pharmaceutical manufacturing or any environment subject caustic washdown or regular temporary submersion. 304 Stainless steel housings provide excellent chemical and corrosion resistance capable of resisting many acids, fats and most food and beverage processing chemicals. They are also very strong and useful for carrying the high stress found near drives, belt and chain tensioners.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code150306
Shaft Size1-1/4"
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesSUC-IP69K
Construction3-Bolt Bracket
SealingIP69K
End CapNone
Dimensions
Attribute nameAttribute value
Bore (in)1.25
H (in)6.1417
L (in)3.742
J (in)3.2677
A2 (in)1.4567
A1 (in)0.5157
H1 (in)2.374
H2 (in)1.252
A (in)2
N (in)0.8268
E (in)1.8268
S (in)0.689
B (in)1.689
N1 (in)0.5118
Mass
Attribute nameAttribute value
Weight(lbs)3.8
Mounting Information
Attribute nameAttribute value
Bolt7/16
Associated Products
Attribute nameAttribute value
Bearing InsertSUC207-20 IP69K
HousingSFB207
