1-9/16" Stainless Mounted Set Screw Bearing Insert|High Temp Bearings

Picture of Stainless Steel, Setscrew Locking, Ball Bearing Insert

Stainless Steel Setscrew Locking Ball Bearing Insert

RFQ

Qty:

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD

Specifications:

Description

Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		103340
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		SUC
Shaft Size		1-9/16"
Collar		Setscrew
Greasable	Re-lubrication	Greasable
Construction		Self-Aligning

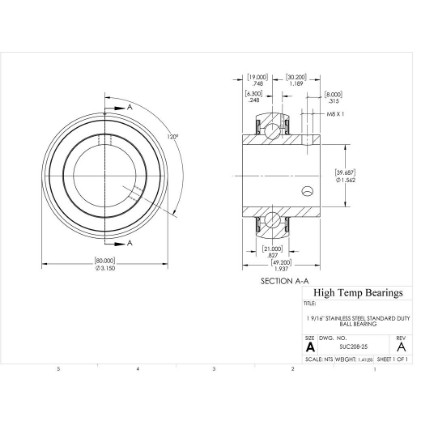

Dimensions

Attribute name		Attribute value
Bore (in)		1.5625
D (in)		3.1496
B (in)		1.937
S (in)		0.748
C (in)		0.8268
h (in)		0.248
S1(in)		1.189
G (in)		0.315
ds		5/16-24 UNF

Calculation Data

Attribute name		Attribute value
C (lb)	Dynamic Load Capacity	6375
C0 (lb)	Static Load Capacity	3960

Mass

Attribute name		Attribute value
Weight(lbs)		1.41

Safe Loads

Attribute name		Attribute value
Tmax (F)		248
Tmin (F)		-10
