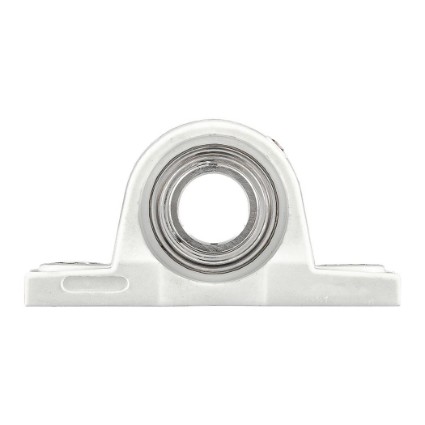

IP69K Plastic Pillow Block Food Safe Bearing: STPUCP208-24 IP69K

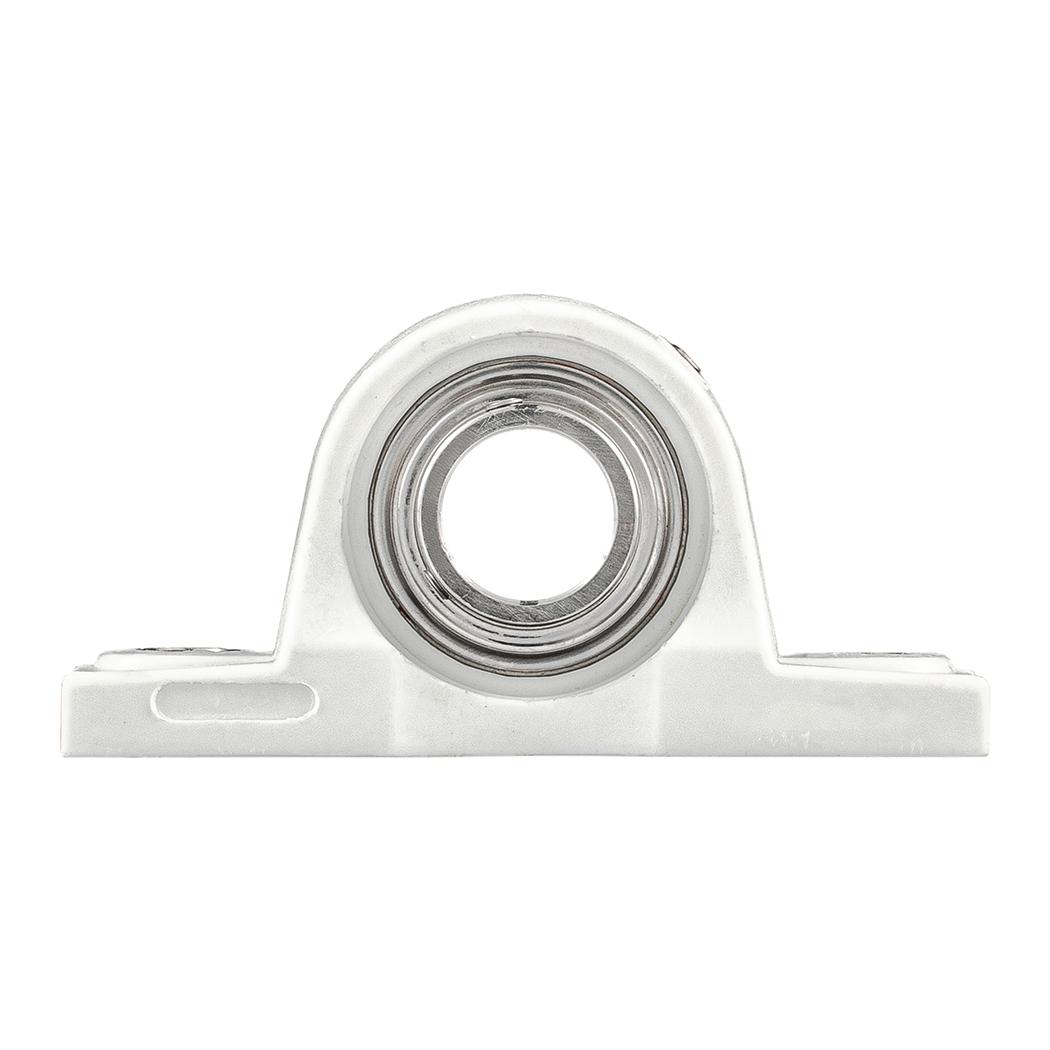

Picture of IP69K Plastic Pillow Block Food Safe Bearing

IP69K Plastic Pillow Block Food Safe Bearing: STPUCP208-24 IP69K

IP69K Plastic Pillow Block Mounted Food Bearing

$283.49

Qty:

checkbox icon This item typically ship in 1-4 weeks.

Specifications:

Description

For moderate loads, speed, and vibration. All bearings are IP69K rated for dust tight protection, close range high pressure and temperature washdown or steam cleaning. Lubricated for life with a NSF H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminum Complex thickened grease to eliminate lubrication holes, grease zerks, and other potential areas for contamination intrusion. Ideal for food, poultry, meat, pharmaceutical manufacturing or any environment subject caustic washdown or regular temporary submersion. Thermoplastic housings provide excellent chemical and corrosion resistance capable of resisting many acids, fats and most food and beverage processing chemicals.

Free Ground Shipping on orders over $99 use Code "SHIPFREE" at checkout

Attribute name		Attribute value
Daily Shipping Deal		SHIPFREE

Product Information

Attribute name		Attribute value
Code		160506
Shaft Size		1-1/2"
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		TP-IP69K
Construction		Pillow Block
Sealing		IP69K
End Cap		None
Collar		Setscrew
Greasable	Re-lubrication	Non-Greaseable

Dimensions

Attribute name		Attribute value
Bore (in)		1.5
H (in)		1.937
L (in)		7.087
J (in)		5.354
H1 (in)		0.709
H2 (in)		3.858
A (in)		2.047
N (in)		0.591
S (in)		0.748
B (in)		1.937
N1 (in)		0.827

Mass

Attribute name		Attribute value
Weight(lbs)		1.98

Mounting Information

Attribute name		Attribute value
Bolt		1/2

Associated Products

Attribute name		Attribute value
Bearing Insert		SUC208-24 IP69K
Housing		PP208
