IP69K Plastic 3 Bolt Bracket Food Safe Bearing: STPUCFB206-18 IP69K

IP69K Plastic 3 Bolt Bracket Food Safe Bearing: STPUCFB206-18 IP69K

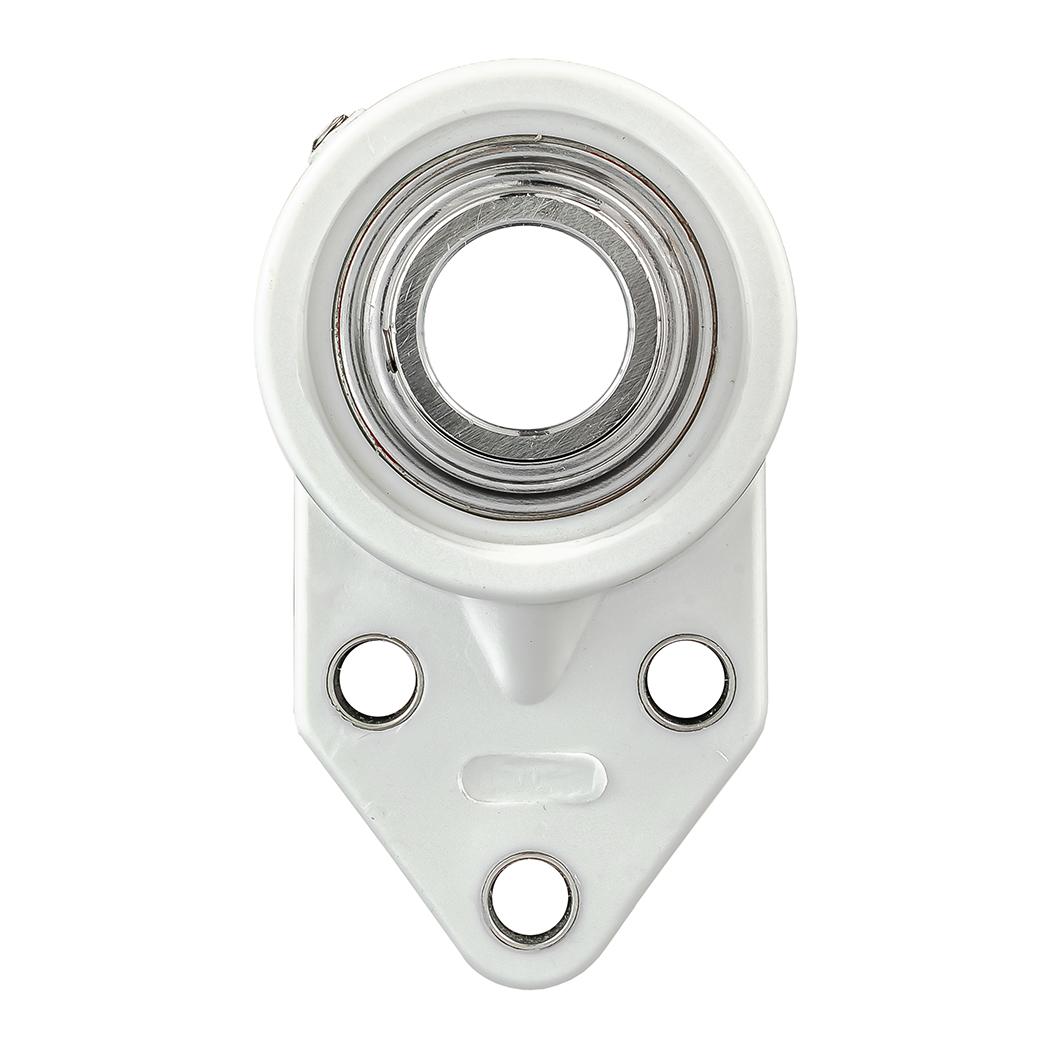

IP69K Plastic 3 Bolt Bracket Mounted Food Bearing
$137.99
EA

checkbox icon This item typically ship in 1-4 weeks.

Specifications:
Attribute nameAttribute value
Construction3-Bolt Bracket
SealingIP69K
End CapNone
Shaft Size1-1/8"
H (in)5.197
L (in)3.15
J (in)2.559
A2 (in)1.221
A1 (in)0.3937
H1 (in)1.969
H2 (in)1.142
A (in)1.575
E (in)1.5827
S (in)0.626
Bolt5/16
Bearing InsertSUC206-18
HousingPFB206
Weight(lbs)0.73
Code160461
PackageQTY1
UOMEA
SeriesTP-IP69K
Bore (in)1.125
N (in)0.7087
N1 (in)0.5118
For moderate loads, speed, and vibration. All bearings are IP69K rated for dust tight protection, close range high pressure and temperature washdown or steam cleaning. Lubricated for life with a NSF H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminum Complex thickened grease to eliminate lubrication holes, grease zerks, and other potential areas for contamination intrusion. Ideal for food, poultry, meat, pharmaceutical manufacturing or any environment subject caustic washdown or regular temporary submersion. Thermoplastic housings provide excellent chemical and corrosion resistance capable of resisting many acids, fats and most food and beverage processing chemicals.
