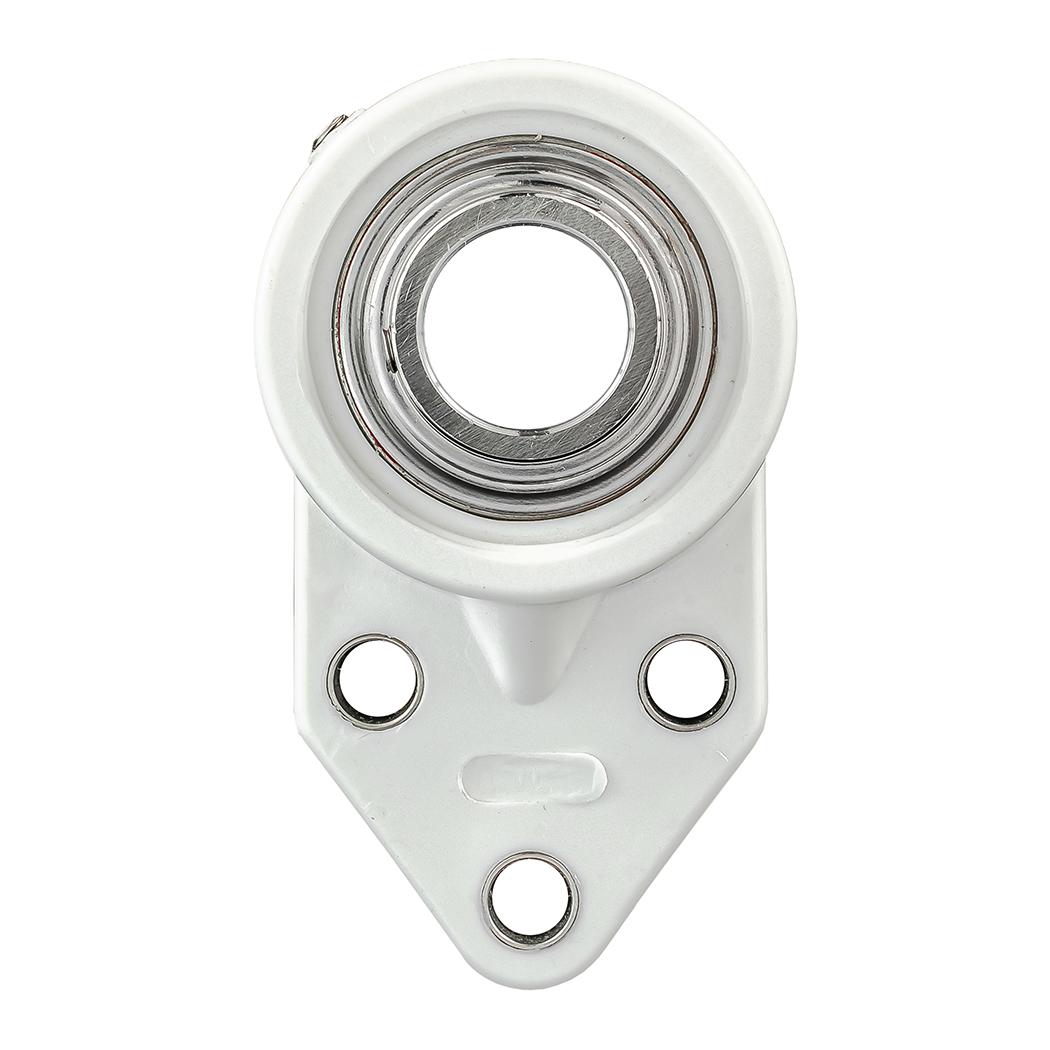

IP69K Plastic 3 Bolt Bracket Food Safe Bearing: STPUCFB205-16 IP69K

IP69K Plastic 3 Bolt Bracket Food Safe Bearing: STPUCFB205-16 IP69K

IP69K Plastic 3 Bolt Bracket Mounted Food Bearing
$116.99
EA

checkbox icon This item typically ship in 1-4 weeks.

Specifications:
Attribute nameAttribute value
Construction3-Bolt Bracket
SealingIP69K
End CapNone
Shaft Size1"
H (in)4.567
L (in)2.677
J (in)2.205
A2 (in)1.063
A1 (in)0.3937
H1 (in)1.772
H2 (in)1.063
A (in)1.339
E (in)1.4055
S (in)0.563
Bolt5/16
Bearing InsertSUC205-16 IP69K
HousingPFB205
Weight(lbs)0.46
Code160459
PackageQTY1
UOMEA
SeriesTP-IP69K
Bore (in)1
N (in)0.6299
N1 (in)0.5118
For moderate loads, speed, and vibration. All bearings are IP69K rated for dust tight protection, close range high pressure and temperature washdown or steam cleaning. Lubricated for life with a NSF H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminum Complex thickened grease to eliminate lubrication holes, grease zerks, and other potential areas for contamination intrusion. Ideal for food, poultry, meat, pharmaceutical manufacturing or any environment subject caustic washdown or regular temporary submersion. Thermoplastic housings provide excellent chemical and corrosion resistance capable of resisting many acids, fats and most food and beverage processing chemicals.
