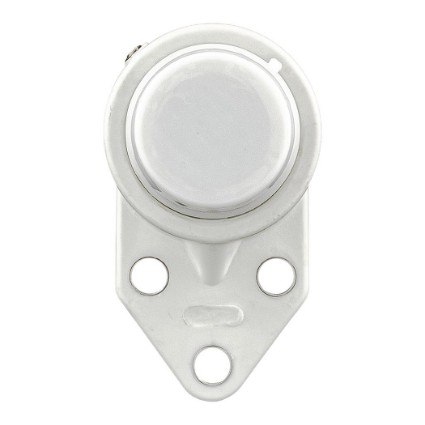

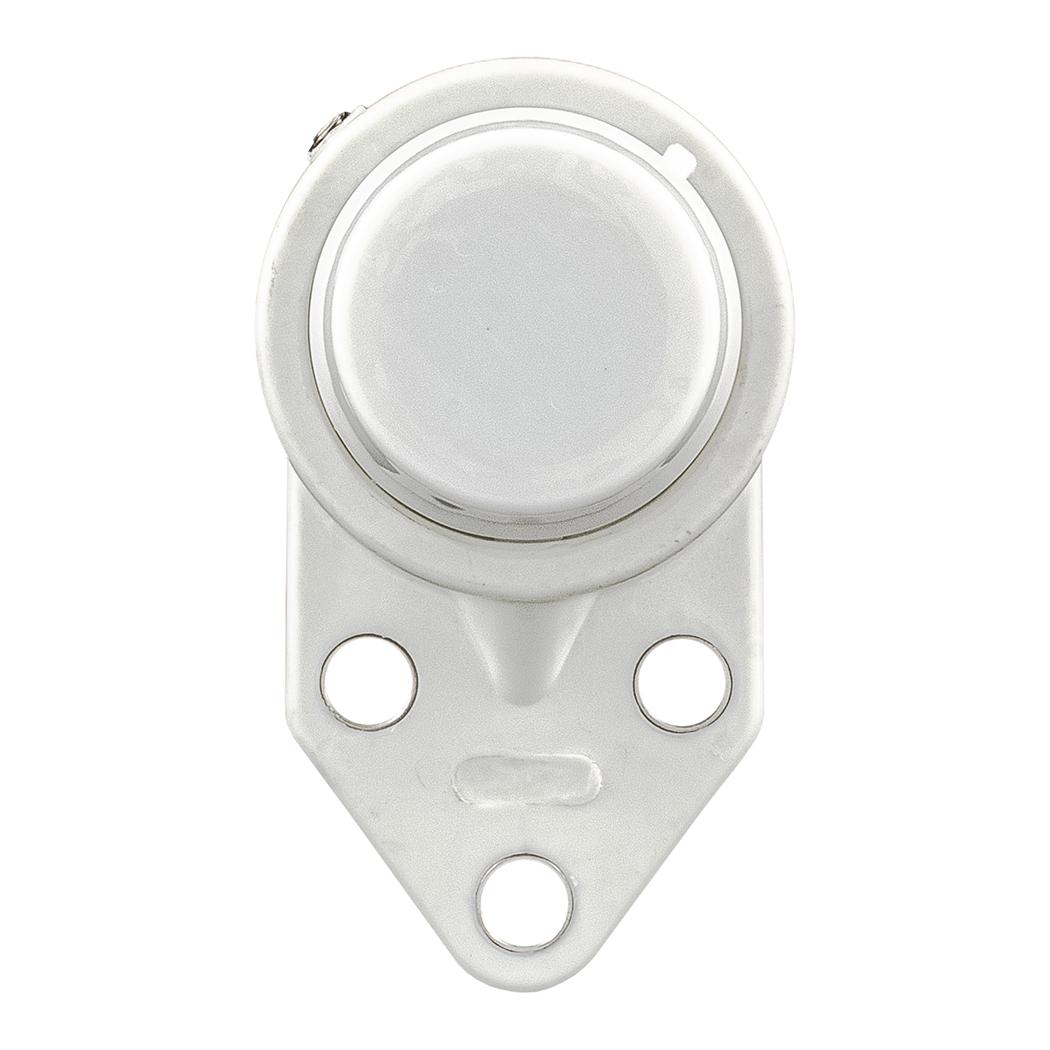

IP69K Plastic 3 Bolt Bracket Mounted Food Bearing with End Cap
$107.99
EA

checkbox icon This item typically ship in 1-4 weeks.

Specifications:
Attribute nameAttribute value
Construction3-Bolt Bracket
SealingIP69K
End CapCovered
Shaft Size20mm
H (in)4.291
L (in)2.362
J (in)2.047
A2 (in)1.004
A1 (in)0.3937
H1 (in)1.654
H2 (in)1.063
A (in)1.26
E (in)1.772
S (in)0.5
Bolt5/16
Bearing InsertSUC204 IP69K
HousingPFB204
Weight(lbs)0.4
Code160548
PackageQTY1
UOMEA
SeriesTPC-IP69K
Bore (in)0.7874
N (in)0.5906
N1 (in)0.4331
For moderate loads, speed, and vibration. All bearings are IP69K rated for dust tight protection, close range high pressure and temperature washdown or steam cleaning. Lubricated for life with a NSF H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminum Complex thickened grease to eliminate lubrication holes, grease zerks, and other potential areas for contamination intrusion. Ideal for food, poultry, meat, pharmaceutical manufacturing or any environment subject caustic washdown or regular temporary submersion. Thermoplastic housings provide excellent chemical and corrosion resistance capable of resisting many acids, fats and most food and beverage processing chemicals. A plastic end cap is included to protect the equipment operator from contact with moving parts and the bearing from direct spray.
