Plastic 3 Bolt Bracket Food Grade Bearing: STPUCFB204-12

Plastic 3 Bolt Bracket Food Grade Bearing: STPUCFB204-12

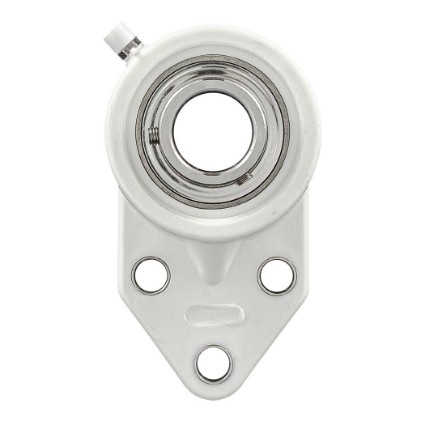

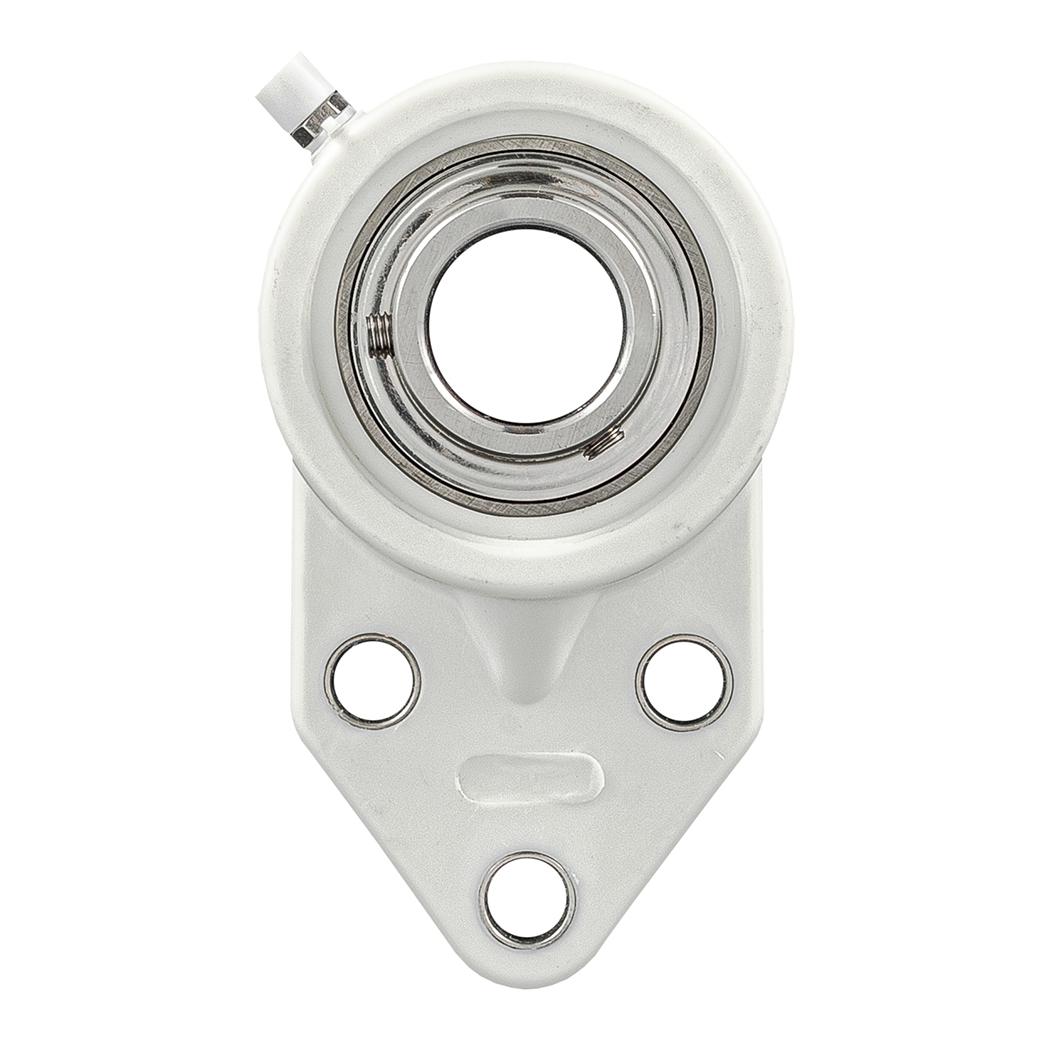

Plastic 3 Bolt Bracket Mounted Food Bearing
$95.99
EA

checkbox icon This item typically ship in 1-4 weeks.

Specifications:
Attribute nameAttribute value
Construction3-Bolt Bracket
SealingStandard
End CapNone
Shaft Size3/4"
H (in)4.291
L (in)2.362
J (in)2.047
A2 (in)1.004
A1 (in)0.3937
H1 (in)1.654
H2 (in)1.063
A (in)1.26
E (in)1.311
S (in)0.5
Bolt5/16
Bearing InsertSUC204-12
HousingPFB204
Weight(lbs)0.4
Code160045
PackageQTY1
UOMEA
SeriesTP
Bore (in)0.75
N (in)0.5906
N1 (in)0.4331
For moderate loads, speed, and vibration. All bearings are equipped with close tolerance stainless steel metal shields, an internal silicone contact seal (B-type), and factory lubricated with a NSF H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminum Complex thickened grease. Suitable for general use in food processing with moderate washdown requirements and can be PM'd. Thermoplastic housings provide excellent chemical and corrosion resistance capable of resisting many acids, fats and most food and beverage processing chemicals.
