Home
>
Heavy Duty Mounted Bearings
>
High Temperature S2000 Mounted Spherical Roller Bearings
>
70mm High Temperature S2000 Non Expansion Wide Slot Take Up Heavy Duty Bearing
Print Page

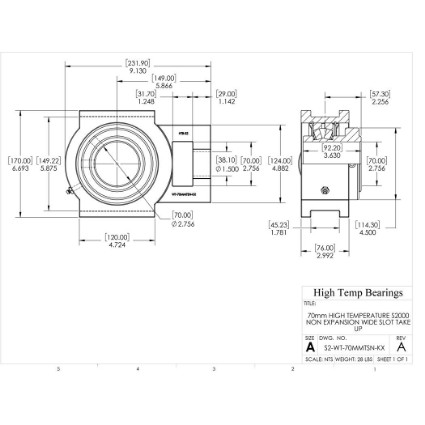

High Temperature S2000 Wide Slot Take Up Flange: S2-WT-70MMTSN-KX
High Temperature S2000 Wide Slot Take Up Flange: S2-WT-70MMTSN-KX
High Temperature S2000 Non Expansion Wide Slot Take Up Flange Mounted Spherical Roller Bearing
$1,084.70
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
Wide Slot Take-Up
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
70mm
A (mm)
231.9
B (mm)
76
C (mm)
170
D (mm)
114.3
E (mm)
149.22
Bolt
38.1
H (mm)
149
J (mm)
120
K (mm)
70
L (mm)
92.2
M (mm)
31.7
P (mm)
124
S (mm)
45.23
Co (lb)
52830
Weight(lbs)
28
Code
105784
PackageQTY
1
UOM
EA
Series
S2000-KX
Bore (mm)
70
G (mm)
29
T (mm)
63.3
C (lb)
41590
Max RPM-Triple Lip Seal
1500
Max RPM-PTFE Seal
2040
Max RPM-Metal Labyrinth Seal
2150
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
