High Temperature S2000 Wide Slot Take Up Flange: S2-WT-219TSN-KX

High Temperature S2000 Wide Slot Take Up Flange: S2-WT-219TSN-KX

High Temperature S2000 Non Expansion Wide Slot Take Up Flange Mounted Spherical Roller Bearing
$631.03
EA

checkbox icon This item typically ship in 1-4 weeks.

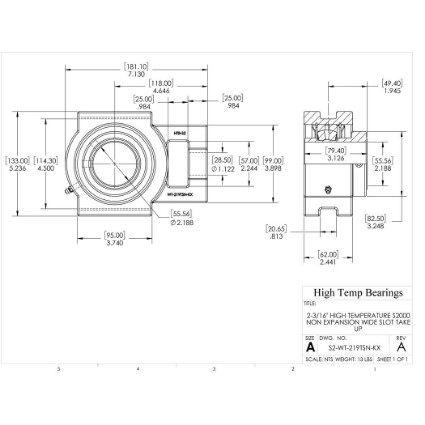

CAD
Specifications:
Attribute nameAttribute value
ConstructionWide Slot Take-Up
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size2-3/16"
A (mm)181.1
B (mm)62
C (mm)133
D (mm)82.5
E (mm)114.3
Bolt28.5
H (mm)118
J (mm)95
K (mm)57
L (mm)79.4
M (mm)25
P (mm)99
S (mm)20.65
Co (lb)28100
Weight(lbs)13
Code105657
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)55.5625
G (mm)25
T (mm)55.4
C (lb)23600
Max RPM-Triple Lip Seal2000
Max RPM-PTFE Seal2700
Max RPM-Metal Labyrinth Seal2800
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
