Home
>
Heavy Duty Mounted Bearings
>
High Temperature S2000 Mounted Spherical Roller Bearings
>
1-15/16" High Temperature S2000 Non Expansion Wide Slot Take Up Heavy Duty Bearing
Print Page
High Temperature S2000 Wide Slot Take Up Flange: S2-WT-194TSN-KX
High Temperature S2000 Wide Slot Take Up Flange: S2-WT-194TSN-KX
High Temperature S2000 Non Expansion Wide Slot Take Up Flange Mounted Spherical Roller Bearing
$567.92
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.

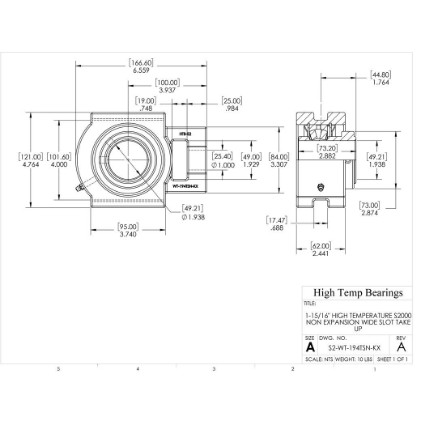

CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
Wide Slot Take-Up
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
1-15/16"
A (mm)
166.6
B (mm)
62
C (mm)
121
D (mm)
73
E (mm)
101.6
Bolt
25.4
H (mm)
100
J (mm)
95
K (mm)
49
L (mm)
73.2
M (mm)
19
P (mm)
84
S (mm)
17.47
Co (lb)
24730
Weight(lbs)
10
Code
105610
PackageQTY
1
UOM
EA
Series
S2000-KX
Bore (mm)
49.2125
G (mm)
25
T (mm)
50.8
C (lb)
20230
Max RPM-Triple Lip Seal
2225
Max RPM-PTFE Seal
3180
Max RPM-Metal Labyrinth Seal
3150
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
