Home
>
Heavy Duty Mounted Bearings
>
High Temperature S2000 Mounted Spherical Roller Bearings
>

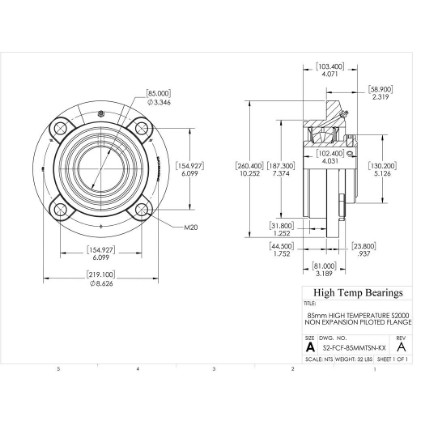

85mm High Temperature S2000 Non Expansion Piloted Flange Heavy Duty Bearing
Print Page
High Temperature S2000 Piloted Flange: S2-FCF-85MMTSN-KX
High Temperature S2000 Piloted Flange: S2-FCF-85MMTSN-KX
High Temperature S2000 Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$1,506.82
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
Piloted Flange
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
85mm
Dismount Thread
7/16-14 UNC
A (mm)
260.4
B (mm)
81
C (mm)
23.8
D (mm)
130.2
Bolt
M20
G (mm)
64.9
H (mm)
31.8
K (mm)
44.5
L (mm)
102.4
M (mm)
154.9
Z (mm)
187.3
Co (lb)
83180
Weight(lbs)
32
Code
105843
PackageQTY
1
UOM
EA
Series
S2000-KX
Bore (mm)
85
E (mm)
219.1
T (mm)
109.4
C (lb)
62950
Max RPM-Triple Lip Seal
1250
Max RPM-PTFE Seal
1600
Max RPM-Metal Labyrinth Seal
1600
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
