High Temperature S2000 Piloted Flange: S2-FCF-55MMTSN-KX

High Temperature S2000 Piloted Flange: S2-FCF-55MMTSN-KX

High Temperature S2000 Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$607.90
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
Attribute nameAttribute value
Daily Shipping DealFree shipping on $1999 or more in Type-E and S2000 Bearings
Product Information
Attribute nameAttribute value
Code105655
Shaft Size55mm
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesS2000-KX
ConstructionPiloted Flange
TypeNon-Expansion
CollarSingle Locking Collar

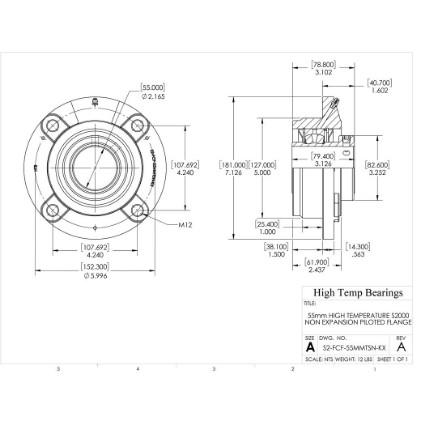

Dimensions
Attribute nameAttribute value
Bore (mm)55
A (mm)181
B (mm)61.9
C (mm)14.3
D (mm)82.6
E (mm)152.3
G (mm)46.7
H (mm)25.4
K (mm)38.1
L (mm)79.4
M (mm)107.8
T (mm)84.8
Z (mm)127
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity23600
Co (lb)Static load capacity28100
Mass
Attribute nameAttribute value
Weight(lbs)12
Mounting Information
Attribute nameAttribute value
Dismount Thread5/16-18 UNC
BoltRecommended Foot BoltM12
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed2000
Max RPM-PTFE SealLimiting speed2800
Max RPM-Metal Labyrinth SealLimiting speed2800
