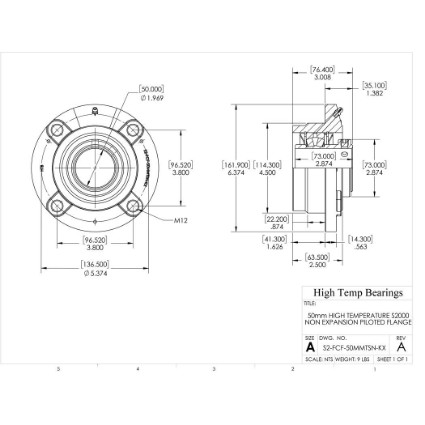

High Temperature S2000 Piloted Flange: S2-FCF-50MMTSN-KX

High Temperature S2000 Piloted Flange: S2-FCF-50MMTSN-KX

High Temperature S2000 Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$573.37
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size50mm
Dismount Thread5/16-18 UNC
A (mm)161.9
B (mm)63.5
C (mm)14.3
D (mm)73
BoltM12
G (mm)41.1
H (mm)22.2
K (mm)41.3
L (mm)73
M (mm)96.5
Z (mm)114.3
Co (lb)24730
Weight(lbs)9
Code105633
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)50
E (mm)136.5
T (mm)82.4
C (lb)20230
Max RPM-Triple Lip Seal2225
Max RPM-PTFE Seal3180
Max RPM-Metal Labyrinth Seal3180
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
