High Temperature S2000 Piloted Flange: S2-FCF-40MMTSN-KX

High Temperature S2000 Piloted Flange: S2-FCF-40MMTSN-KX

High Temperature S2000 Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$418.20
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
Attribute nameAttribute value
Daily Shipping DealFree shipping on $1999 or more in Type-E and S2000 Bearings
Product Information
Attribute nameAttribute value
Code105592
Shaft Size40mm
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesS2000-KX
ConstructionPiloted Flange
TypeNon-Expansion
CollarSingle Locking Collar

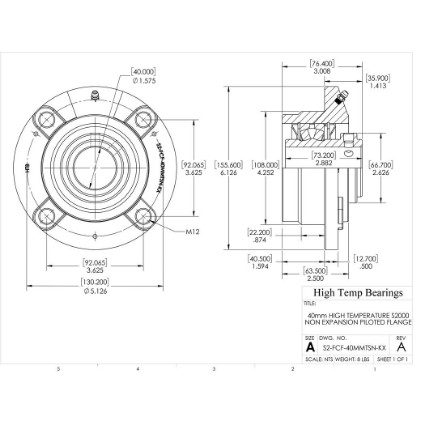

Dimensions
Attribute nameAttribute value
Bore (mm)40
A (mm)155.6
B (mm)63.5
C (mm)12.7
D (mm)66.7
E (mm)130.2
G (mm)41.9
H (mm)22.2
K (mm)40.5
L (mm)73.2
M (mm)92
T (mm)82.4
Z (mm)108
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity17980
Co (lb)Static load capacity21360
Mass
Attribute nameAttribute value
Weight(lbs)8
Mounting Information
Attribute nameAttribute value
Dismount Thread5/16-18 UNC
BoltRecommended Foot BoltM12
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed2425
Max RPM-PTFE SealLimiting speed3360
Max RPM-Metal Labyrinth SealLimiting speed3360
