High Temperature S2000 Piloted Flange: S2-FCF-344TSN-KX

High Temperature S2000 Piloted Flange: S2-FCF-344TSN-KX

High Temperature S2000 Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$1,362.53
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
Attribute nameAttribute value
Daily Shipping DealFree shipping on $1999 or more in Type-E and S2000 Bearings
Product Information
Attribute nameAttribute value
Code105819
Shaft Size3-7/16"
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesS2000-KX
ConstructionPiloted Flange
TypeNon-Expansion
CollarSingle Locking Collar

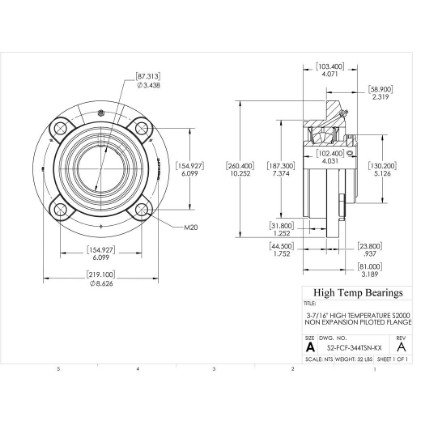

Dimensions
Attribute nameAttribute value
Bore (mm)87.3125
A (mm)260.4
B (mm)81
C (mm)23.8
D (mm)130.2
E (mm)219.1
G (mm)64.9
H (mm)31.8
K (mm)44.5
L (mm)102.4
M (mm)154.9
T (mm)109.4
Z (mm)187.3
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity62950
Co (lb)Static load capacity83180
Mass
Attribute nameAttribute value
Weight(lbs)32
Mounting Information
Attribute nameAttribute value
Dismount Thread7/16-14 UNC
BoltRecommended Foot BoltM20
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed1250
Max RPM-PTFE SealLimiting speed1600
Max RPM-Metal Labyrinth SealLimiting speed1600
