High Temperature S2000 4 Bolt Pillow Block: S2-4PB-80MMTSN-KX

High Temperature S2000 4 Bolt Pillow Block: S2-4PB-80MMTSN-KX

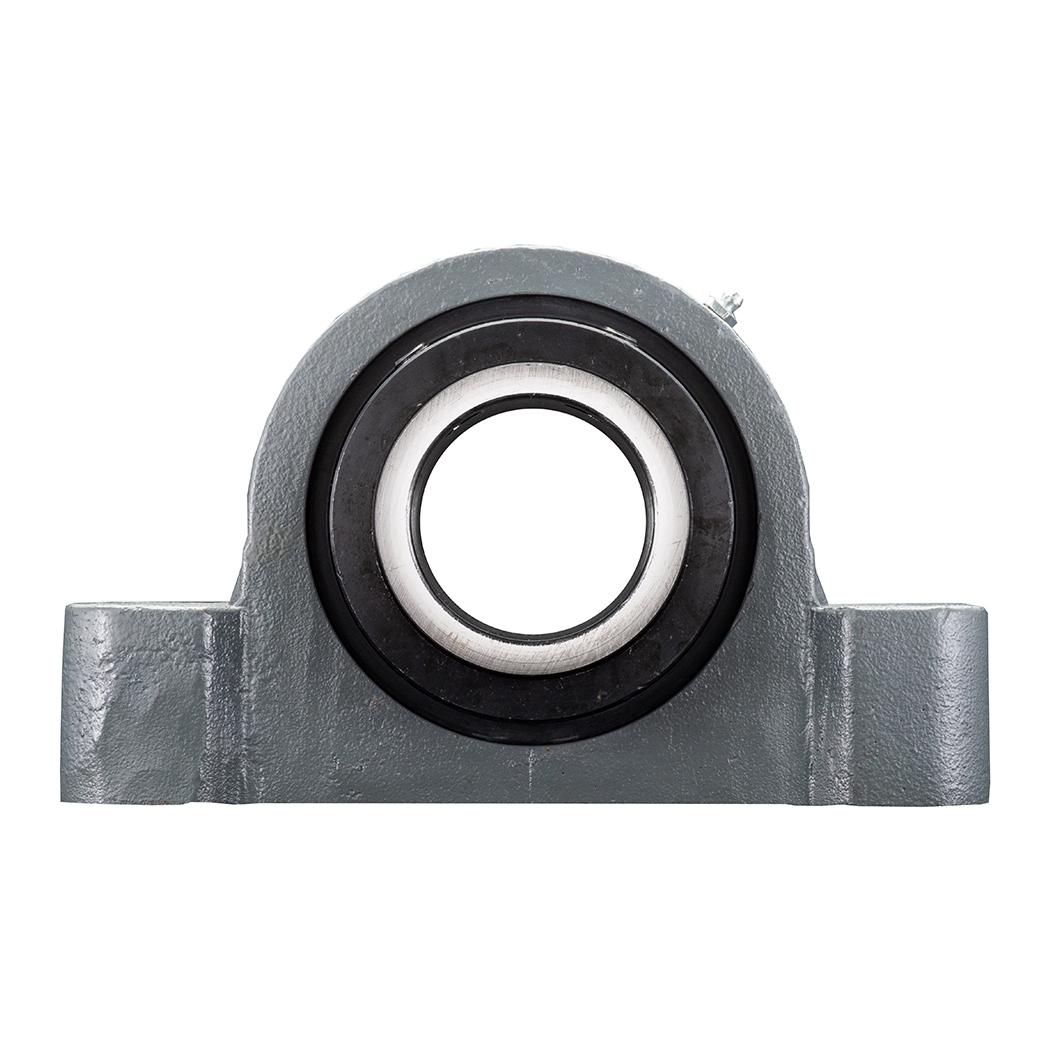

High Temperature S2000 Non Expansion 4 Bolt Pillow Block Mounted Spherical Roller Bearing
$1,135.13
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
Attribute nameAttribute value
Daily Shipping DealFree shipping on $1999 or more in Type-E and S2000 Bearings
Product Information
Attribute nameAttribute value
Code105807
Shaft Size80mm
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesS2000-KX
Construction4-Bolt Pillow Block
TypeNon-Expansion
CollarSingle Locking Collar

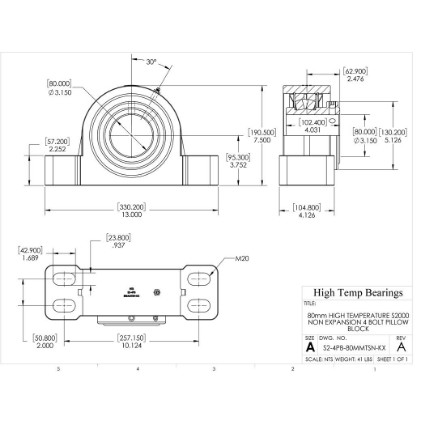

Dimensions
Attribute nameAttribute value
Bore (mm)80
A (mm)330.2
B (mm)104.8
C (mm)57.2
D (mm)130.2
E (mm)50.8
G (mm)42.9
H (mm)95.3
J (mm)190.5
K (mm)23.8
L (mm)102.4
M Min (mm)238.1
M Max (mm)276.2
T (mm)68.9
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity62950
Co (lb)Static load capacity83180
Mass
Attribute nameAttribute value
Weight(lbs)41
Mounting Information
Attribute nameAttribute value
BoltRecommended Foot BoltM20
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed1250
Max RPM-PTFE SealLimiting speed1600
Max RPM-Metal Labyrinth SealLimiting speed1600
