High Temperature S2000 Mounted Spherical Roller Bearings
>
70mm High Temperature S2000 Non Expansion 4 Bolt Pillow Block Heavy Duty Bearing
Print Page
High Temperature S2000 4 Bolt Pillow Block: S2-4PB-70MMTSN-KX
High Temperature S2000 4 Bolt Pillow Block: S2-4PB-70MMTSN-KX

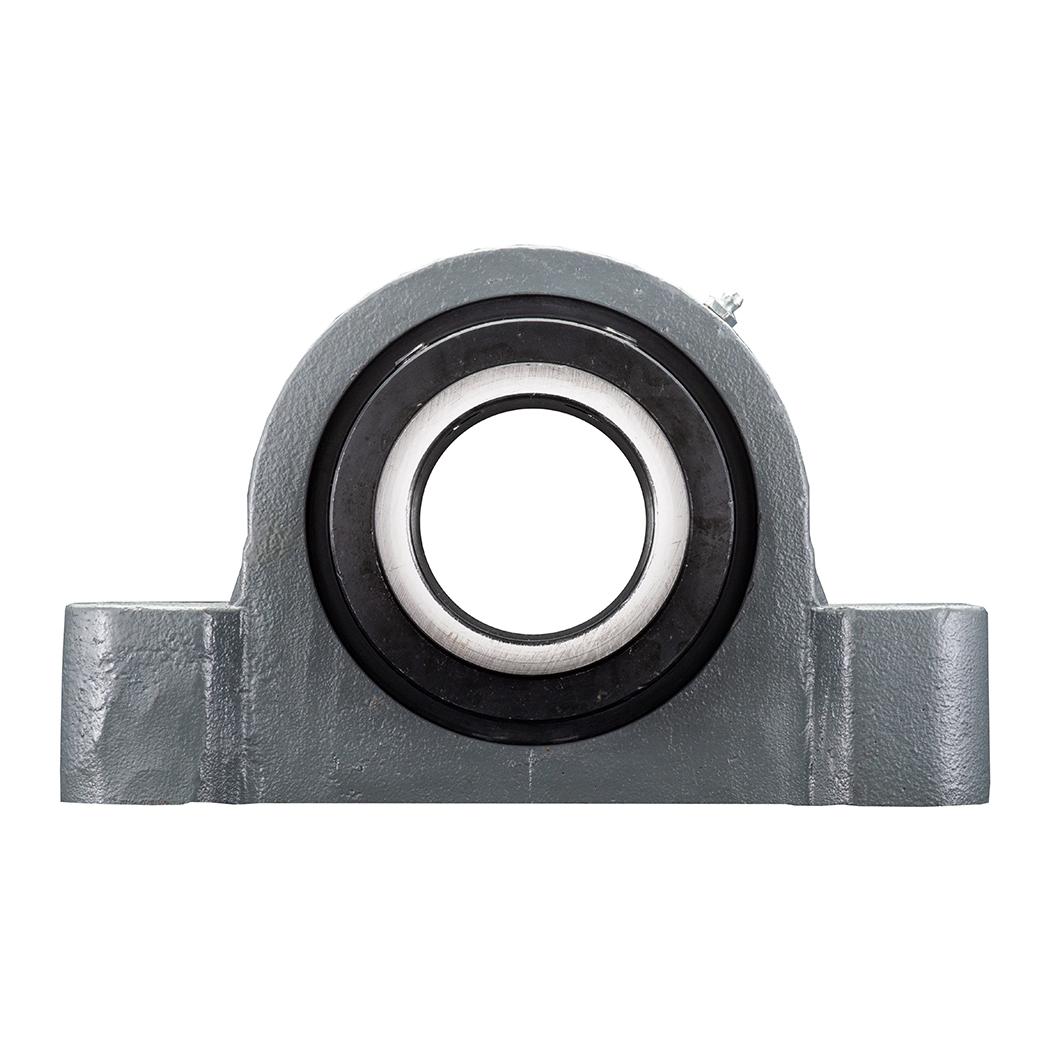

High Temperature S2000 Non Expansion 4 Bolt Pillow Block Mounted Spherical Roller Bearing
$1,033.56
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL

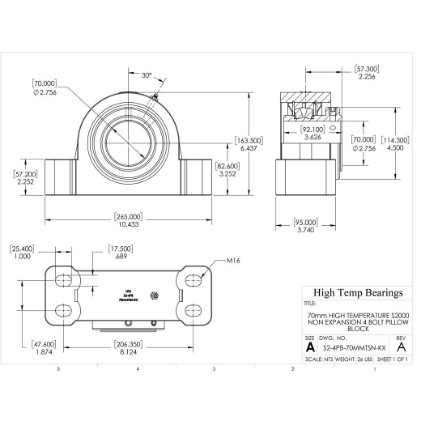

Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Pillow Block
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
70mm
A (mm)
265
B (mm)
95
D (mm)
114.3
E (mm)
47.6
Bolt
M16
G (mm)
25.4
H (mm)
82.6
J (mm)
163.5
K (mm)
17.5
L (mm)
92.1
M Min (mm)
198.4
M Max (mm)
214.3
Co (lb)
52830
Weight(lbs)
26
Code
105733
PackageQTY
1
UOM
EA
Series
S2000-KX
Bore (mm)
70
C (mm)
57.2
T (mm)
63.3
C (lb)
41590
Max RPM-Triple Lip Seal
1500
Max RPM-PTFE Seal
2150
Max RPM-Metal Labyrinth Seal
2150
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
