High Temperature S2000 Mounted Spherical Roller Bearings
>
3-15/16" High Temperature S2000 Non Expansion 4 Bolt Pillow Block Heavy Duty Bearing
Print Page

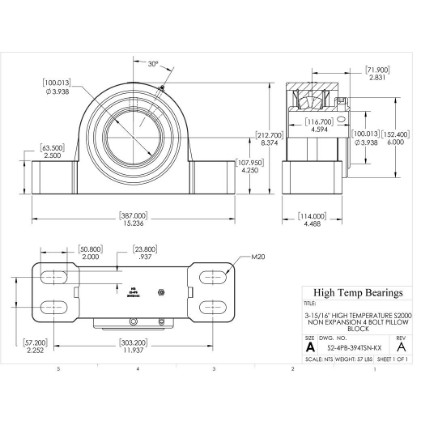

High Temperature S2000 4 Bolt Pillow Block: S2-4PB-394TSN-KX
High Temperature S2000 4 Bolt Pillow Block: S2-4PB-394TSN-KX
High Temperature S2000 Non Expansion 4 Bolt Pillow Block Mounted Spherical Roller Bearing
$2,046.45
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Pillow Block
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
3-15/16"
A (mm)
387
B (mm)
114
D (mm)
152.4
E (mm)
57.2
Bolt
M20
G (mm)
50.8
H (mm)
107.95
J (mm)
212.7
K (mm)
23.8
L (mm)
116.7
M Min (mm)
276.2
M Max (mm)
330.2
Co (lb)
112400
Weight(lbs)
57
Code
105860
PackageQTY
1
UOM
EA
Series
S2000-KX
Bore (mm)
100.0125
C (mm)
63.5
T (mm)
78.9
C (lb)
84300
Max RPM-Triple Lip Seal
1100
Max RPM-PTFE Seal
1350
Max RPM-Metal Labyrinth Seal
1350
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
