Single Row NUP Cylindrical Roller Bearing: NUP312ECP

Single Row NUP Cylindrical Roller Bearing: NUP312ECP

Single Row NUP Cylindrical Roller Bearing
$469.97
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

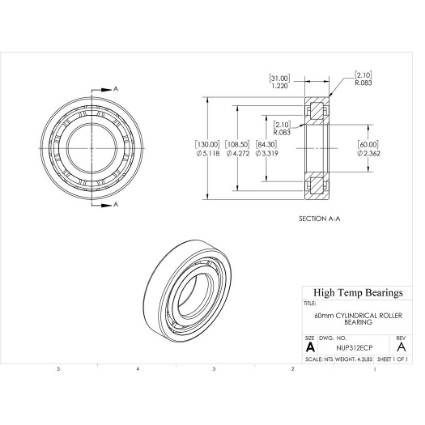

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges ID and Two OD
Shaft Size60mm
D (mm)130
B (mm)31
C (lb)38892
C0 (lb)35970
Pu (lb)4766
Nr (RPM)5600
Nmax (RPM)6700
Weight(lbs)4.2
Code410420
Bore (mm)60
Da (mm)118.1
damin (mm)72
d1 (mm)84.3
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
Damin-db (mm)87
r1-r2 (mm)2.1
r3-r4 (mm)2.1
ramax (mm)2
k0.15
D1 (mm)108.5
F (mm)77
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
