Single Row NUP Cylindrical Roller Bearing: NUP2305ECP

Single Row NUP Cylindrical Roller Bearing: NUP2305ECP

Single Row NUP Cylindrical Roller Bearing
$247.20
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

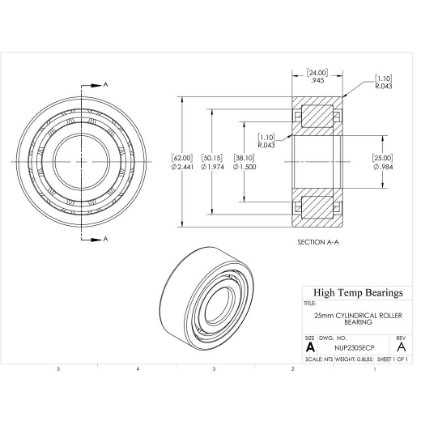

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges ID and Two OD
Shaft Size25mm
D (mm)62
B (mm)24
C (lb)14388
C0 (lb)12365
Pu (lb)1562
Nr (RPM)12000
Nmax (RPM)15000
Weight(lbs)0.8
Code410324
Bore (mm)25
Da (mm)54.9
damin (mm)31
d1 (mm)38.1
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
Damin-db (mm)40
r1-r2 (mm)1.1
r3-r4 (mm)1.1
ramax (mm)1
k0.25
D1 (mm)50.15
F (mm)34
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
