Single Row NUP Cylindrical Roller Bearing
$1,019.12

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code410500
Shaft Size90mm
SealsNone
ConstructionTwo Flanges ID and Two OD
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

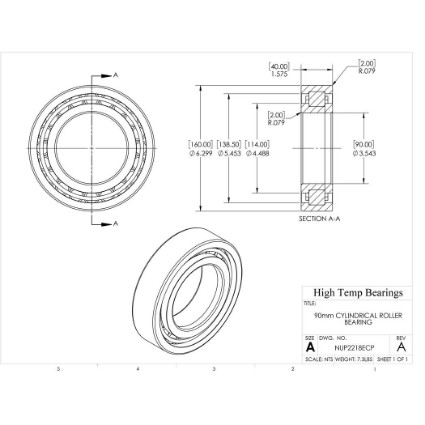

Dimensions

Attribute nameAttribute value
Bore (mm)90
D (mm)160
B (mm)40
d1 (mm)114
r1-r2 (mm)2
r3-r4 (mm)2
D1 (mm)138.5
F (mm)107

Abutment Dimensions

Attribute nameAttribute value
Da (mm)149
damin (mm)101
Damin-db (mm)117
ramax (mm)2

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed4500
Nmax (RPM)Limiting speed5000
C (lb)Dynamic load capacity62947
C0 (lb)Static load capacity70815
Pu (lb)Fatigue load limit8768
kThrust factor0.2

Mass

Attribute nameAttribute value
Weight(lbs)7.3

Tolerance Class

Attribute nameAttribute value
ClearanceCN

Safe Loads

Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
