Single Row NUP Cylindrical Roller Bearing: NUP2211ECP

Single Row NUP Cylindrical Roller Bearing: NUP2211ECP

Single Row NUP Cylindrical Roller Bearing
$400.85
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

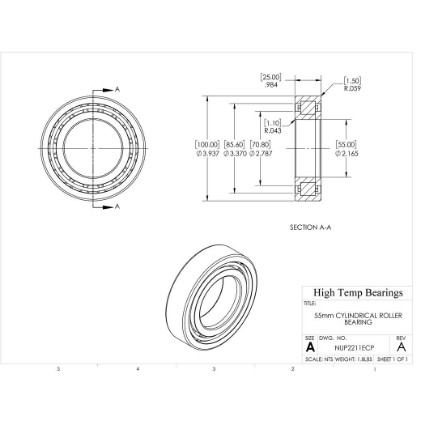

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges ID and Two OD
Shaft Size55mm
D (mm)100
B (mm)25
C (lb)25628
C0 (lb)26528
Pu (lb)3440
Nr (RPM)7500
Nmax (RPM)8000
Weight(lbs)1.8
Code410402
Bore (mm)55
Da (mm)91.4
damin (mm)63
d1 (mm)70.8
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
Damin-db (mm)73
r1-r2 (mm)1.5
r3-r4 (mm)1.1
ramax (mm)1.5
k0.2
D1 (mm)85.6
F (mm)66
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
