Single Row NUP Cylindrical Roller Bearing: NUP218ECP

Single Row NUP Cylindrical Roller Bearing: NUP218ECP

Single Row NUP Cylindrical Roller Bearing
$820.56
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

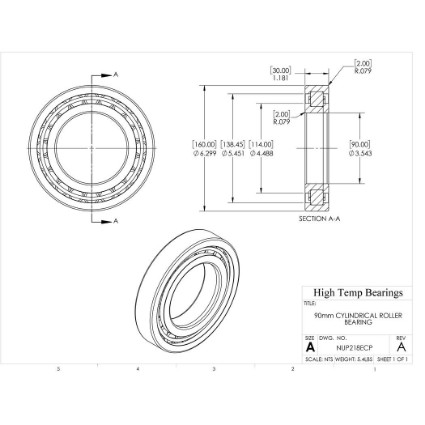

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges ID and Two OD
Shaft Size90mm
D (mm)160
B (mm)30
C (lb)46760
C0 (lb)49458
Pu (lb)6070
Nr (RPM)4500
Nmax (RPM)5000
Weight(lbs)5.4
Code410497
Bore (mm)90
Da (mm)149
damin (mm)101
d1 (mm)114
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
Damin-db (mm)117
r1-r2 (mm)2
r3-r4 (mm)2
ramax (mm)2
k0.15
D1 (mm)138.45
F (mm)107
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
