Single Row NUP Cylindrical Roller Bearing: NUP214ECP

Single Row NUP Cylindrical Roller Bearing: NUP214ECP

Single Row NUP Cylindrical Roller Bearing
$424.64
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

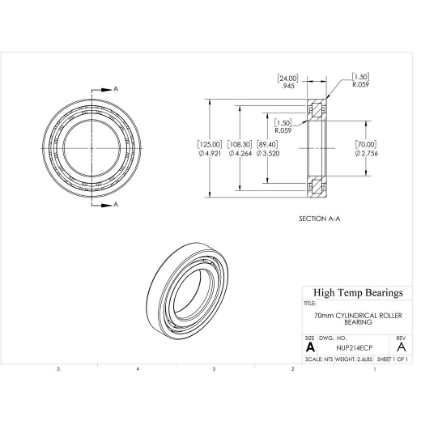

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges ID and Two OD
Shaft Size70mm
D (mm)125
B (mm)24
C (lb)30799
C0 (lb)30799
Pu (lb)4047
Nr (RPM)6000
Nmax (RPM)6300
Weight(lbs)2.6
Code410443
Bore (mm)70
Da (mm)115.4
damin (mm)79
d1 (mm)89.4
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
Damin-db (mm)92
r1-r2 (mm)1.5
r3-r4 (mm)1.5
ramax (mm)1.5
k0.15
D1 (mm)108.3
F (mm)83.5
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
