Single Row NU Cylindrical Roller Bearing: NU314ECP

Single Row NU Cylindrical Roller Bearing: NU314ECP

Single Row NU Cylindrical Roller Bearing
$401.55
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

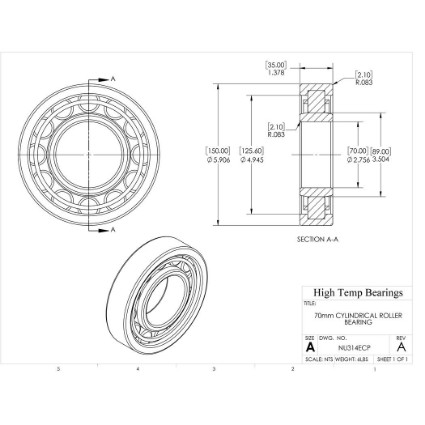

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges OD
Shaft Size70mm
D (mm)150
B (mm)35
C (lb)53055
C0 (lb)51257
Pu (lb)6519
Nr (RPM)4800
Nmax (RPM)5600
Weight(lbs)6
Code410448
Bore (mm)70
Da (mm)137.5
damin (mm)82
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)125.6
Damin-db (mm)92
damax (mm)86
r1-r2 (mm)2.1
r3-r4 (mm)2.1
ramax (mm)2
rbmax (mm)2
k0.15
t (mm)125.6
smax (mm)1.8
B1 (mm)10
B2 (mm)15.5
F (mm)89
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
