Single Row NU Cylindrical Roller Bearing: NU2310ECP

Single Row NU Cylindrical Roller Bearing: NU2310ECP

Single Row NU Cylindrical Roller Bearing
$279.09
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

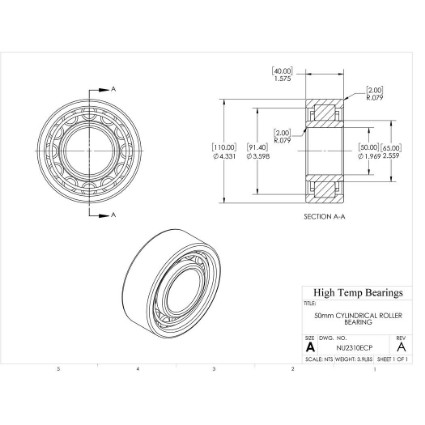

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges OD
Shaft Size50mm
D (mm)110
B (mm)40
C (lb)41815
C0 (lb)41815
Pu (lb)5508
Nr (RPM)6700
Nmax (RPM)8000
Weight(lbs)3.9
Code410393
Bore (mm)50
Da (mm)99.6
damin (mm)60
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)91.4
Damin-db (mm)67
damax (mm)63
r1-r2 (mm)2
r3-r4 (mm)2
ramax (mm)2
rbmax (mm)2
k0.25
t (mm)91.4
smax (mm)3.4
F (mm)65
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
