Single Row NU Cylindrical Roller Bearing: NU2309ECP

Single Row NU Cylindrical Roller Bearing: NU2309ECP

Single Row NU Cylindrical Roller Bearing
$232.64
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

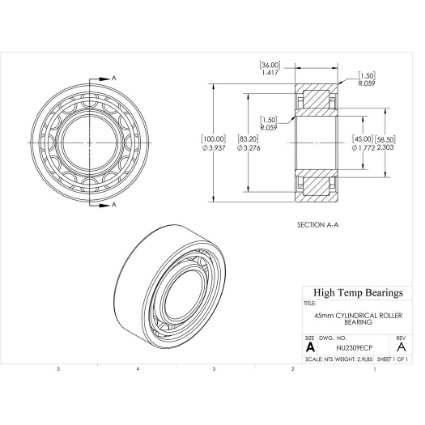

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges OD
Shaft Size45mm
D (mm)100
B (mm)36
C (lb)35970
C0 (lb)34396
Pu (lb)4496
Nr (RPM)7500
Nmax (RPM)8500
Weight(lbs)2.9
Code410379
Bore (mm)45
Da (mm)91.4
damin (mm)54
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)83.2
Damin-db (mm)60
damax (mm)56
r1-r2 (mm)1.5
r3-r4 (mm)1.5
ramax (mm)1.5
rbmax (mm)1.5
k0.25
t (mm)83.2
smax (mm)3.2
F (mm)58.5
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
