Single Row NU Cylindrical Roller Bearing: NU226ECP

Single Row NU Cylindrical Roller Bearing: NU226ECP

Single Row NU Cylindrical Roller Bearing
$937.93
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

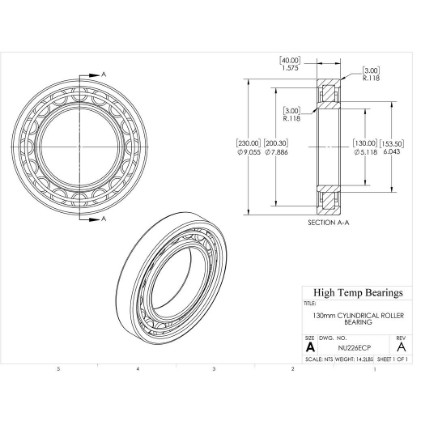

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges OD
Shaft Size130mm
D (mm)230
B (mm)40
C (lb)93296
C0 (lb)102289
Pu (lb)11465
Nr (RPM)3200
Nmax (RPM)3400
Weight(lbs)14.2
Code410547
Bore (mm)130
Da (mm)215.4
damin (mm)144
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)200.3
Damin-db (mm)157
damax (mm)150
r1-r2 (mm)3
r3-r4 (mm)3
ramax (mm)2.5
rbmax (mm)2.5
k0.15
t (mm)200.3
smax (mm)2.1
B1 (mm)11
B2 (mm)17
F (mm)153.5
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
