Single Row NU Cylindrical Roller Bearing: NU222ECP

Single Row NU Cylindrical Roller Bearing: NU222ECP

Single Row NU Cylindrical Roller Bearing
$704.35
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

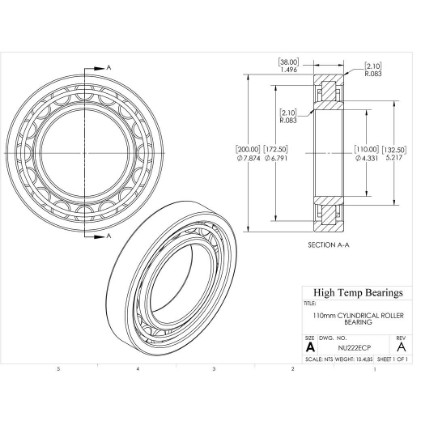

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges OD
Shaft Size110mm
D (mm)200
B (mm)38
C (lb)75311
C0 (lb)82056
Pu (lb)9554
Nr (RPM)3600
Nmax (RPM)4000
Weight(lbs)10.4
Code410530
Bore (mm)110
Da (mm)187
damin (mm)122
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)172.5
Damin-db (mm)135
damax (mm)129
r1-r2 (mm)2.1
r3-r4 (mm)2.1
ramax (mm)2
rbmax (mm)2
k0.15
t (mm)172.5
smax (mm)2.1
B1 (mm)11
B2 (mm)17
F (mm)132.5
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
