Full Complement Single Row Cylindrical Roller Bearing: NCF3004CV

Full Complement Single Row Cylindrical Roller Bearing: NCF3004CV

Full Complement Single Row Cylindrical Roller Bearing
$136.31
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Supports greater radial loads than an equal-sized caged cylindrical bearing with more tolerance to heat and thermal cycling. RPM limits are reduced compared to caged roller bearings. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code410551
Shaft Size20mm
SealsNone
ConstructionFull Complement
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

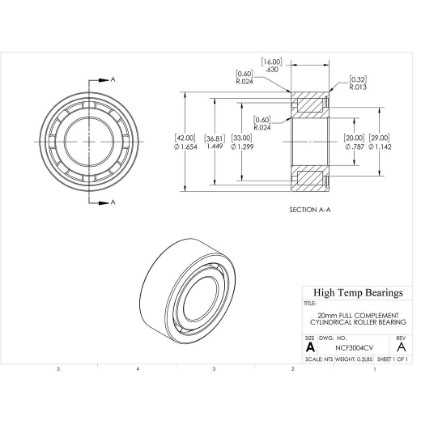

Dimensions
Attribute nameAttribute value
Bore (mm)20
D (mm)42
B (mm)16
d1 (mm)29
r1-r2 (mm)0.6
r3-r4 (mm)0.32
D1 (mm)33
E (mm)36.81
Abutment Dimensions
Attribute nameAttribute value
damin (mm)24
Dbmax (mm)39
ramax (mm)0.6
rbmax (mm)0.3
smax (mm)1.5
das1 (mm)26.9
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed8500
Nmax (RPM)Limiting speed10000
C (lb)Dynamic load capacity6317
C0 (lb)Static load capacity6407
Pu (lb)Fatigue load limit697
kThrust factor0.3
Mass
Attribute nameAttribute value
Weight(lbs)0.2
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
