Full Complement Single Row Cylindrical Roller Bearing: NCF2952CV

Full Complement Single Row Cylindrical Roller Bearing: NCF2952CV

Full Complement Single Row Cylindrical Roller Bearing
$6,088.21
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

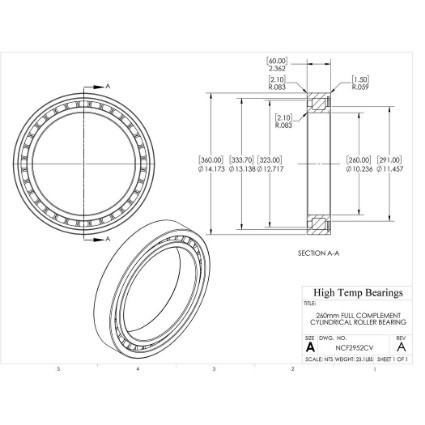

CAD
Specifications:
Attribute nameAttribute value
ConstructionFull Complement
Shaft Size260mm
D (mm)360
B (mm)60
C (lb)165685
C0 (lb)321478
Pu (lb)32148
Nr (RPM)750
Nmax (RPM)950
Weight(lbs)23.1
Code410570
Bore (mm)260
damin (mm)271
d1 (mm)291
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
Dbmax (mm)350
r1-r2 (mm)2.1
r3-r4 (mm)1.5
ramax (mm)2
rbmax (mm)1.5
k0.2
D1 (mm)323
smax (mm)3.5
das1 (mm)287
E (mm)333.7
PackageQTY1
UOMEA
Supports greater radial loads than an equal-sized caged cylindrical bearing with more tolerance to heat and thermal cycling. RPM limits are reduced compared to caged roller bearings. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
