Full Complement Single Row Cylindrical Roller Bearing: NCF2948CV

Full Complement Single Row Cylindrical Roller Bearing: NCF2948CV

Full Complement Single Row Cylindrical Roller Bearing
$4,770.01

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Supports greater radial loads than an equal-sized caged cylindrical bearing with more tolerance to heat and thermal cycling. RPM limits are reduced compared to caged roller bearings. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
Product Information
Attribute nameAttribute value
Code410569
Shaft Size240mm
SealsNone
ConstructionFull Complement
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

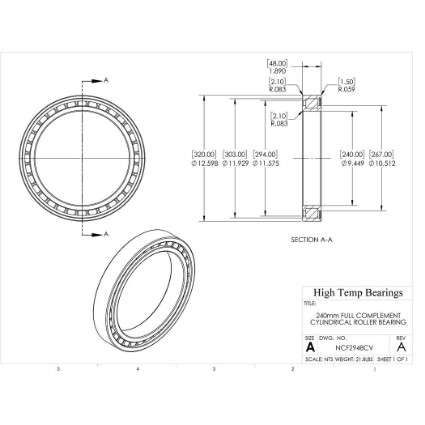

Dimensions
Attribute nameAttribute value
Bore (mm)240
D (mm)320
B (mm)48
d1 (mm)267
r1-r2 (mm)2.1
r3-r4 (mm)1.5
D1 (mm)294
E (mm)303
Abutment Dimensions
Attribute nameAttribute value
damin (mm)251
Dbmax (mm)311
ramax (mm)2
rbmax (mm)1.5
smax (mm)3
das1 (mm)263
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed850
Nmax (RPM)Limiting speed1100
C (lb)Dynamic load capacity131064
C0 (lb)Static load capacity256283
Pu (lb)Fatigue load limit25628
kThrust factor0.2
Mass
Attribute nameAttribute value
Weight(lbs)21.8
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
