Full Complement Single Row Cylindrical Roller Bearing: NCF1884V

Full Complement Single Row Cylindrical Roller Bearing: NCF1884V

Full Complement Single Row Cylindrical Roller Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

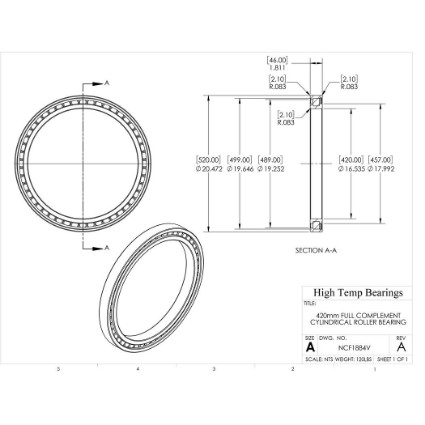

CAD
Specifications:
Description
Supports greater radial loads than an equal-sized caged cylindrical bearing with more tolerance to heat and thermal cycling. RPM limits are reduced compared to caged roller bearings. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code410580
Shaft Size420mm
SealsNone
ConstructionFull Complement
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Dimensions
Attribute nameAttribute value
Bore (mm)420
D (mm)520
B (mm)46
d1 (mm)457
r1-r2 (mm)2.1
r3-r4 (mm)2.1
D1 (mm)489
E (mm)499
Abutment Dimensions
Attribute nameAttribute value
damin (mm)431
Dbmax (mm)513
ramax (mm)2
rbmax (mm)2
smax (mm)3.5
das1 (mm)452
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed480
Nmax (RPM)Limiting speed600
C (lb)Dynamic load capacity148375
C0 (lb)Static load capacity321478
Pu (lb)Fatigue load limit27427
kThrust factor0.1
Mass
Attribute nameAttribute value
Weight(lbs)120
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
