Cup and cone tapered roller bearing: L44643610

Cup and cone tapered roller bearing: L44643610

Cup and cone tapered roller bearing
RFQ

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

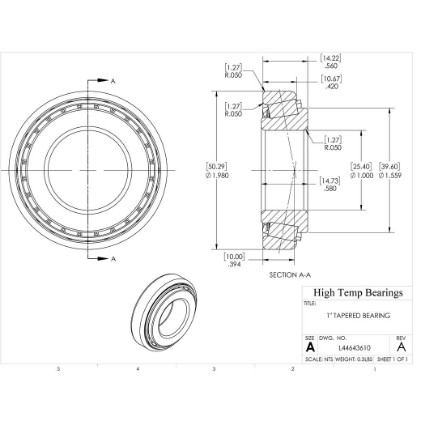

CAD
Specifications:
Description
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
Product Information
Attribute nameAttribute value
Code410150
Shaft Size1"
SealsNone
ConstructionSingle Row
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Dimensions
Attribute nameAttribute value
Bore (mm)25.4
D (mm)50.292
B (mm)14.224
d1 (mm)39.6
T (mm)14.732
P (mm)10.668
r1-r2 (mm)1.27
r3-r4 (mm)1.27
a (mm)10
t (mm)14.732
Abutment Dimensions
Attribute nameAttribute value
Da (mm)33
Damin-db (mm)44
damax (mm)33
dbmin (mm)32.5
Dbmin (mm)32.5
Camin (mm)2
Cbmin (mm)3.5
ramax (mm)1.3
rbmax (mm)1.3
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed11000
Nmax (RPM)Limiting speed13000
C (lb)Dynamic load capacity7194
C0 (lb)Static load capacity6744
Pu (lb)Fatigue load limit674
eLimiting value0.37
YCalculation factor1.6
Y0Calculation factor0.9
Mass
Attribute nameAttribute value
Weight(lbs)0.3
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)250
Tmin (F)-40
