Cup and cone tapered roller bearing: HM801346310

Cup and cone tapered roller bearing: HM801346310

Cup and cone tapered roller bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

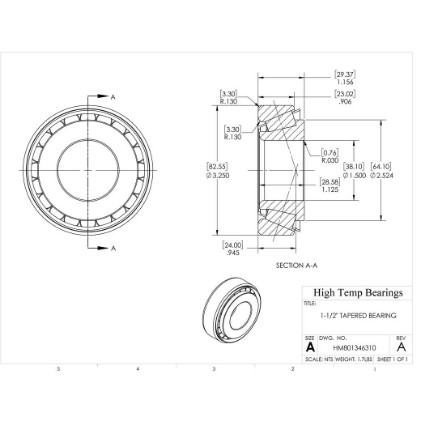

CAD
Specifications:
Attribute nameAttribute value
ConstructionSingle Row
Shaft Size1-1/2"
D (mm)82.55
B (mm)29.37002
C (lb)23830
C0 (lb)26528
Pu (lb)3012
Nr (RPM)6700
Nmax (RPM)8000
d1 (mm)64.1
T (mm)28.575
Weight(lbs)1.7
Code410158
Bore (mm)38.1
Da (mm)49
SealsNone
ClearanceCN
Tmax (F)250
Tmin (F)-40
Material52100
P (mm)23.02002
Damin-db (mm)64
damax (mm)49
dbmin (mm)45.5
Dbmin (mm)45.5
r1-r2 (mm)0.762
r3-r4 (mm)3.302
a (mm)24
Camin (mm)4
Cbmin (mm)6
ramax (mm)8
rbmax (mm)3.3
e0.54
Y1.1
Y00.6
t (mm)28.575
PackageQTY1
UOMEA
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
