High Temperature Type E Piloted Flange: ES-FCF-244TSN-KX

High Temperature Type E Piloted Flange: ES-FCF-244TSN-KX

High Temperature Type E Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$782.92
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
Attribute nameAttribute value
Daily Shipping DealFree shipping on $1999 or more in Type-E and S2000 Bearings
Product Information
Attribute nameAttribute value
Code105673
Shaft Size2-7/16"
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesType-E Spherical-KX
ConstructionPiloted Flange
TypeNon-Expansion
CollarSingle Locking Collar

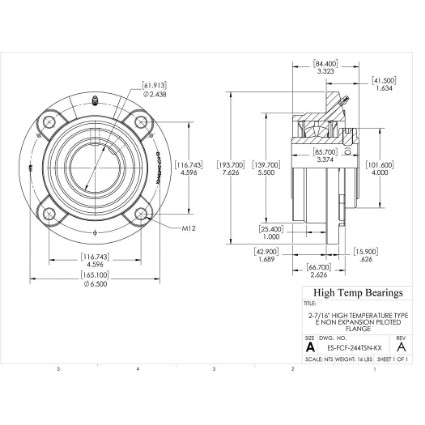

Dimensions
Attribute nameAttribute value
Bore (mm)61.9125
A (mm)193.7
B (mm)66.7
C (mm)15.9
D (mm)101.6
E (mm)165.1
G (mm)47.5
H (mm)25.4
K (mm)42.9
L (mm)85.7
M (mm)116.7
T (mm)90.4
Z (mm)139.7
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity37090
Co (lb)Static load capacity46090
Mass
Attribute nameAttribute value
Weight(lbs)16
Mounting Information
Attribute nameAttribute value
Dismount Thread7/16-14 UNC
BoltRecommended Foot BoltM12
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed1700
Max RPM-PTFE SealLimiting speed2360
Max RPM-Metal Labyrinth SealLimiting speed2360
