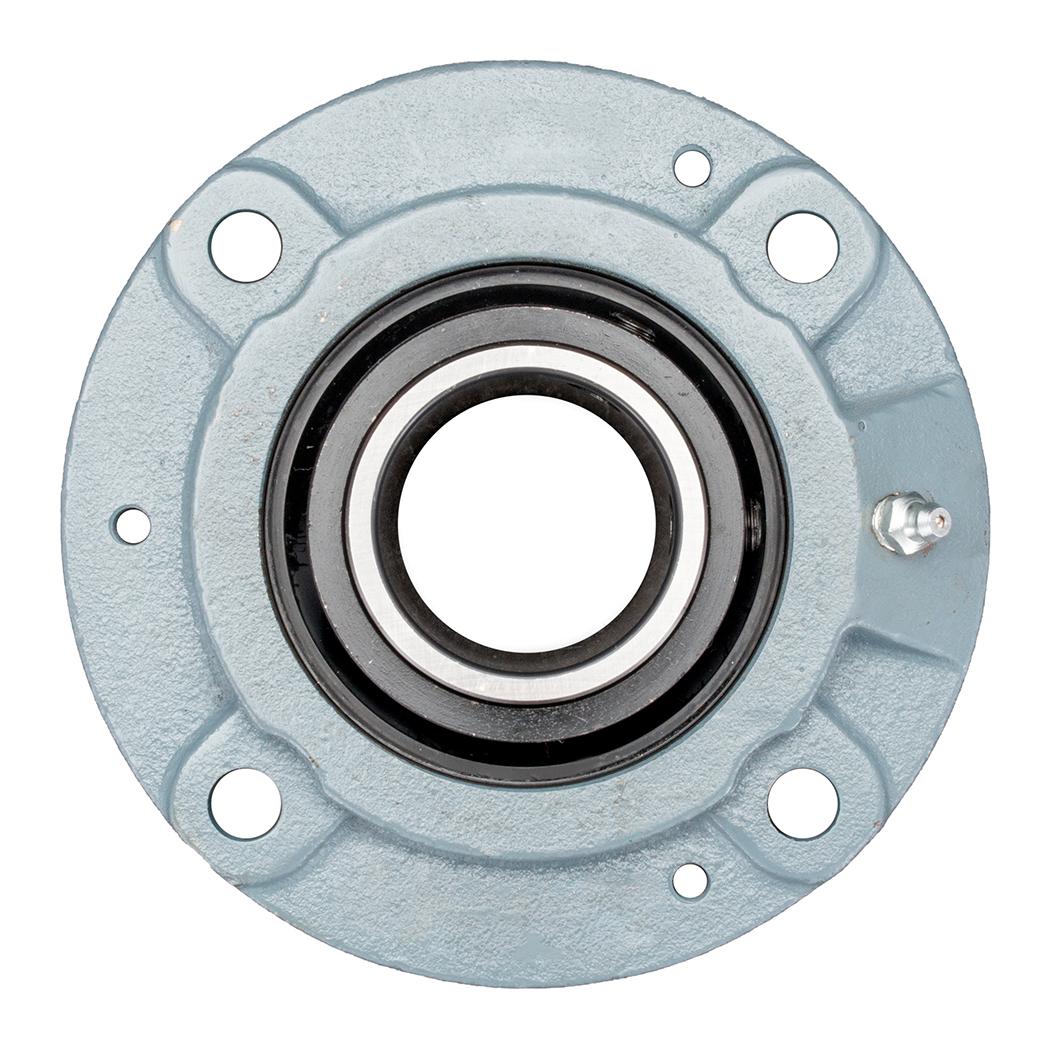

High Temperature Type E Expansion Piloted Flange Mounted Spherical Roller Bearing
$499.58

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Expansion bearings can accommodate moderate axial shaft growth from thermal expansion by allowing axial movement between the housing and bearing OD. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code105577
Shaft Size1-11/16"
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesType-E Spherical-KX
ConstructionPiloted Flange
TypeExpansion
CollarSingle Locking Collar

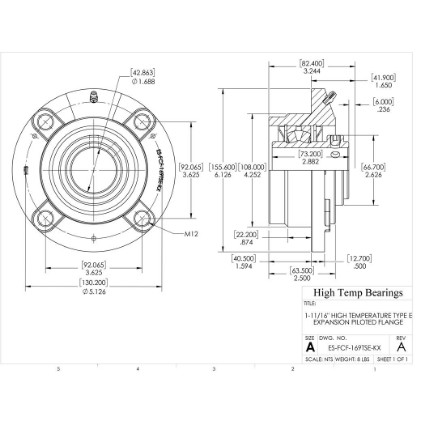

Dimensions

Attribute nameAttribute value
Bore (mm)42.8625
A (mm)155.6
B (mm)63.5
C (mm)12.7
D (mm)66.7
E (mm)130.2
G (mm)41.9
H (mm)22.2
K (mm)40.5
L (mm)73.2
M (mm)92
T (mm)82.4
X (mm)6
Z (mm)108

Calculation Data

Attribute nameAttribute value
C (lb)Dynamic load capacity17980
Co (lb)Static load capacity21360

Mass

Attribute nameAttribute value
Weight(lbs)8

Mounting Information

Attribute nameAttribute value
Dismount Thread5/16-18 UNC
BoltRecommended Foot BoltM12

Safe Loads

Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed2425
Max RPM-PTFE SealLimiting speed3360
Max RPM-Metal Labyrinth SealLimiting speed3360
