High Temperature Type E Piloted Flange: ES-FCF-144TSE-KX

High Temperature Type E Piloted Flange: ES-FCF-144TSE-KX

High Temperature Type E Expansion Piloted Flange Mounted Spherical Roller Bearing
$468.93
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Expansion bearings can accommodate moderate axial shaft growth from thermal expansion by allowing axial movement between the housing and bearing OD. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code105541
Shaft Size1-7/16"
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesType-E Spherical-KX
ConstructionPiloted Flange
TypeExpansion
CollarSingle Locking Collar

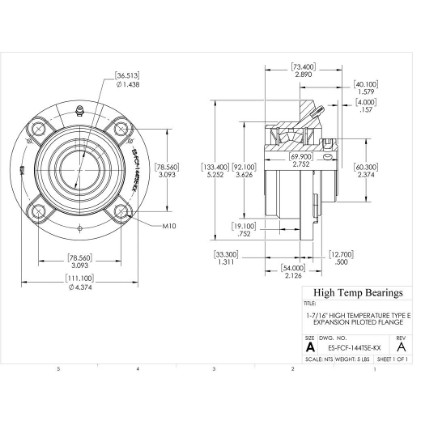

Dimensions
Attribute nameAttribute value
Bore (mm)36.5125
A (mm)133.4
B (mm)54
C (mm)12.7
D (mm)60.3
E (mm)111.1
G (mm)40.1
H (mm)19.1
K (mm)33.3
L (mm)69.9
M (mm)78.6
T (mm)73.4
X (mm)4
Z (mm)92.1
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity17540
Co (lb)Static load capacity20230
Mass
Attribute nameAttribute value
Weight(lbs)5
Mounting Information
Attribute nameAttribute value
Dismount Thread5/16-18 UNC
BoltRecommended Foot BoltM10
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed2750
Max RPM-PTFE SealLimiting speed3600
Max RPM-Metal Labyrinth SealLimiting speed3600
