High Temperature Type-E Mounted Spherical Roller Bearings
>
90mm High Temperature Type E Non Expansion 4 Bolt Flange Heavy Duty Bearing
Print Page

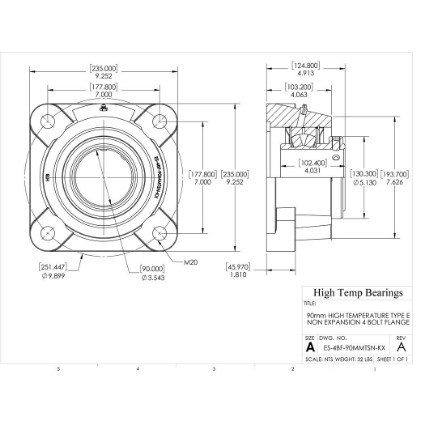

High Temperature Type E 4 Bolt Flange: ES-4BF-90MMTSN-KX
High Temperature Type E 4 Bolt Flange: ES-4BF-90MMTSN-KX
High Temperature Type E Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$1,506.82
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Flange
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
90mm
A (mm)
235
B (mm)
103.2
C (mm)
130.8
D (mm)
130.3
E (mm)
177.8
Bolt
M20
H (mm)
45.97
J (mm)
193.7
K (mm)
251.5
L (mm)
102.4
Co (lb)
83180
Weight(lbs)
32
Code
105829
PackageQTY
1
UOM
EA
Series
Type-E Spherical-KX
Bore (mm)
90
C (lb)
62950
Max RPM-Triple Lip Seal
1250
Max RPM-PTFE Seal
1600
Max RPM-Metal Labyrinth Seal
1600
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
