Home
>
Heavy Duty Mounted Bearings
>
High Temperature Type-E Mounted Spherical Roller Bearings
>
3" High Temperature Type E Expansion 4 Bolt Flange Heavy Duty Bearing
Print Page
High Temperature Type E 4 Bolt Flange: ES-4BF-300TSE-KX
High Temperature Type E 4 Bolt Flange: ES-4BF-300TSE-KX
High Temperature Type E Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$1,096.27
Qty:
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
Manual
TDS1
Specifications:
Description
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Expansion bearings can accommodate moderate axial shaft growth from thermal expansion by allowing axial movement between the housing and bearing OD. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
Attribute name
Attribute value
Daily Shipping Deal
BIGBEARING
Product Information
Attribute name
Attribute value
Code
105748
Shaft Size
3"
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA
Series
Type-E Spherical-KX
Construction
4-Bolt Flange
Type
Expansion
Collar
Single Locking Collar

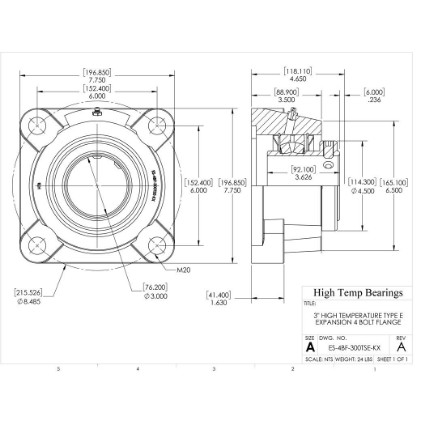

Dimensions
Attribute name
Attribute value
Bore (mm)
76.2
A (mm)
196.85
B (mm)
88.9
C (mm)
118.11
D (mm)
114.3
E (mm)
152.4
H (mm)
41.4
J (mm)
165.1
K (mm)
215.65
L (mm)
92.1
X (mm)
6
Calculation Data
Attribute name
Attribute value
C (lb)
Dynamic load capacity
41590
Co (lb)
Static load capacity
52830
Mass
Attribute name
Attribute value
Weight(lbs)
24
Mounting Information
Attribute name
Attribute value
Bolt
Recommended Foot Bolt
M20
Safe Loads
Attribute name
Attribute value
Max RPM-Triple Lip Seal
Limiting speed
1500
Max RPM-PTFE Seal
Limiting speed
2150
Max RPM-Metal Labyrinth Seal
Limiting speed
2150
