High Temperature Type E 2 Bolt Pillow Block: ES-2PB-244TSE-KX

High Temperature Type E 2 Bolt Pillow Block: ES-2PB-244TSE-KX

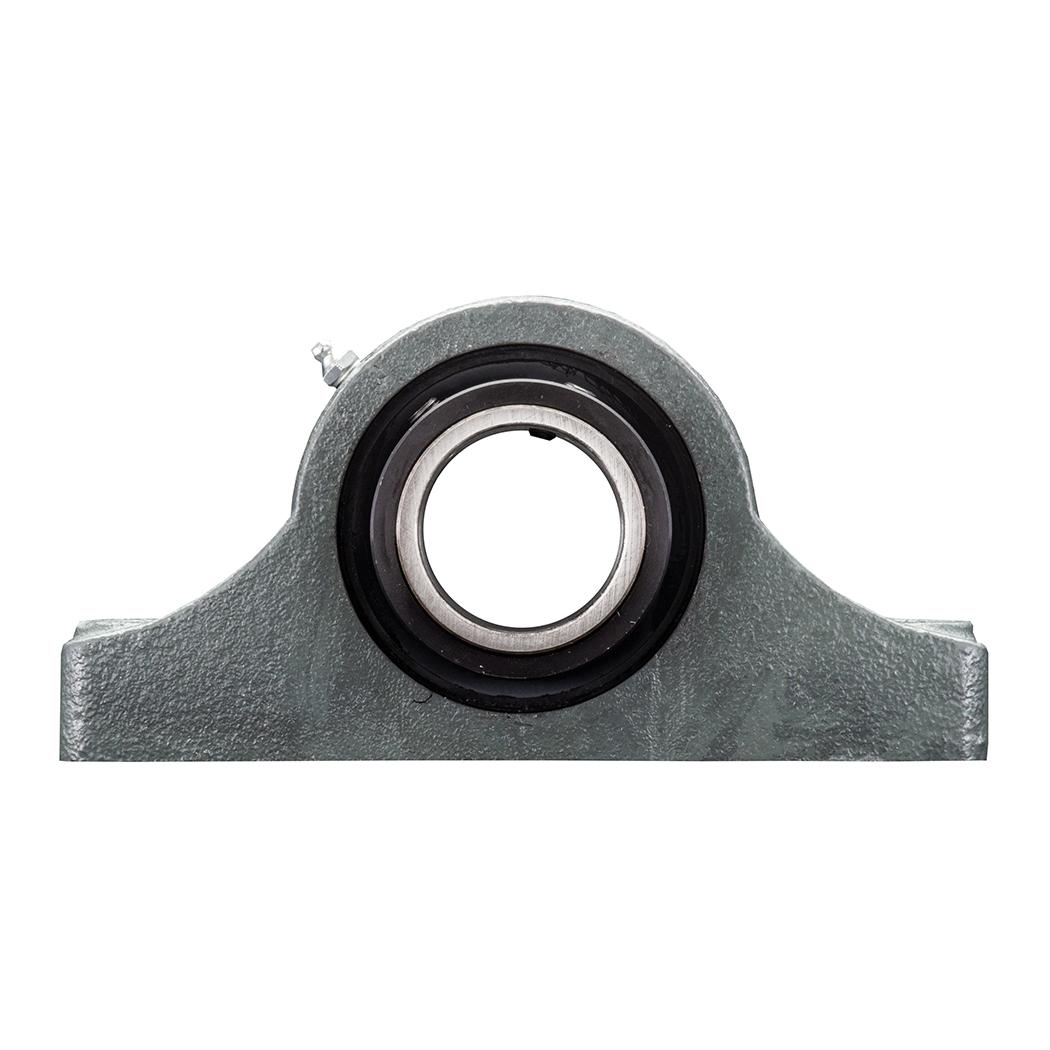

High Temperature Type E Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$782.92

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Expansion bearings can accommodate moderate axial shaft growth from thermal expansion by allowing axial movement between the housing and bearing OD. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
Attribute nameAttribute value
Daily Shipping DealBIGBEARING
Product Information
Attribute nameAttribute value
Code105660
Shaft Size2-7/16"
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesType-E Spherical-KX
Construction2-Bolt Pillow Block
TypeExpansion
CollarSingle Locking Collar
Dimensions
Attribute nameAttribute value
Bore (mm)61.9125
A (mm)267
B (mm)73
C (mm)41
D (mm)102
G (mm)23.8
H (mm)69.85
J (mm)139.7
K (mm)17.5
L (mm)85.7
L1 (mm)108
M Min (mm)210
M Max (mm)222
T (mm)57
X (mm)6
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity37090
Co (lb)Static load capacity46090
Mass
Attribute nameAttribute value
Weight(lbs)20
Mounting Information
Attribute nameAttribute value
BoltRecommended Foot BoltM16
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed1700
Max RPM-PTFE SealLimiting speed2300
Max RPM-Metal Labyrinth SealLimiting speed2300
