High Temperature Type-E Mounted Spherical Roller Bearings
>
2-7/16" High Temperature Type E Double Locking Expansion 2 Bolt Pillow Block Heavy Duty Bearing
Print Page
High Temperature Double Collar Type E 2 Bolt Pillow Block: ES-2PB-244TDE-KX
High Temperature Double Collar Type E 2 Bolt Pillow Block: ES-2PB-244TDE-KX

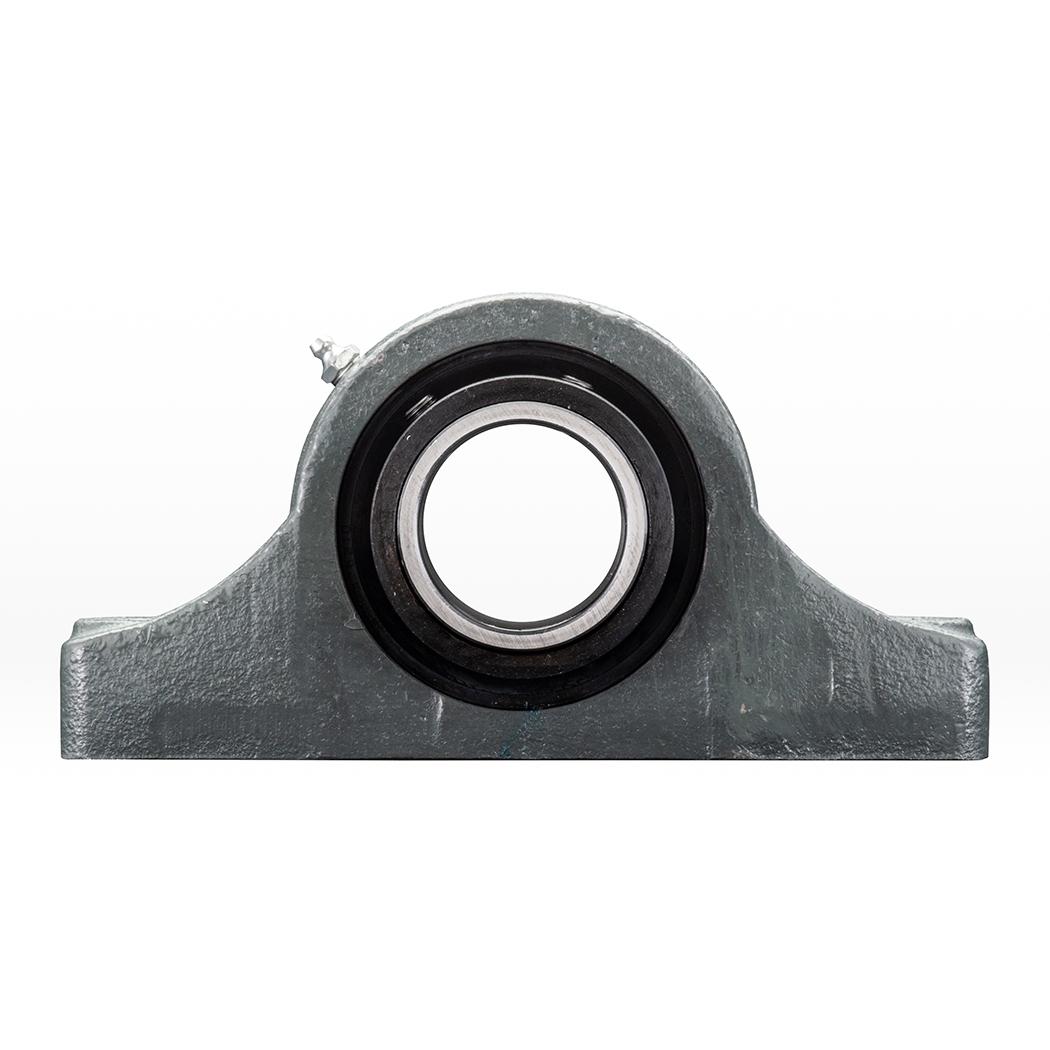

High Temperature Type E Double Collar Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$734.38
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL

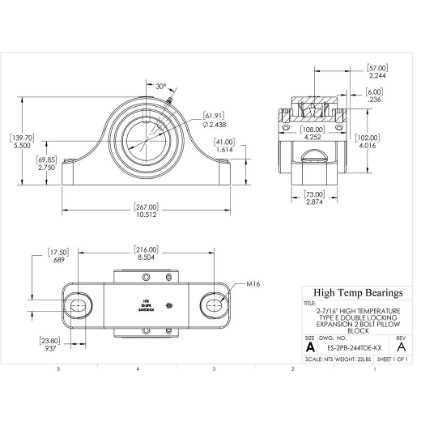

Specifications:
metric
Attribute name
Attribute value
Construction
2-Bolt Pillow Block
Type
Expansion
Collar
Double Locking Collar
Shaft Size
2-7/16"
A (mm)
267
B (mm)
73
D (mm)
102
Bolt
M16
G (mm)
23.8
H (mm)
69.85
J (mm)
139.7
K (mm)
17.5
L1 (mm)
108
M Min (mm)
210
M Max (mm)
222
Co (lb)
46090
Weight(lbs)
22
Code
105706
PackageQTY
1
UOM
EA
Series
Type-E Spherical-KX
Bore (mm)
61.9125
C (mm)
41
L (mm)
85.7
T (mm)
57
X (mm)
6
C (lb)
37090
Max RPM-Triple Lip Seal
1700
Max RPM-PTFE Seal
2300
Max RPM-Metal Labyrinth Seal
2300
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Expansion bearings can accommodate moderate axial shaft growth from thermal expansion by allowing axial movement between the housing and bearing OD. Double collar units provide increased grip on the shaft. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
