Large Back to Back Double Row Tapered Bearing: BT2B332767A

Large Back to Back Double Row Tapered Bearing: BT2B332767A

Large Back to Back Double Row Tapered Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

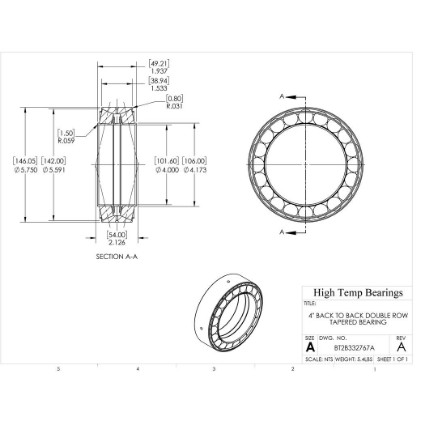

CAD
Specifications:
Attribute nameAttribute value
ConstructionDouble Row Back to Back
Shaft Size4"
D (mm)146.05
B (mm)49.212
C (lb)60024
C0 (lb)84304
Pu (lb)9105
d1 (mm)106
Weight(lbs)5.4
Code410222
Bore (mm)101.6
SealsNone
ClearanceCN
Tmax (F)250
Tmin (F)-40
Material52100
P (mm)38.94
r1-r2 (mm)1.5
r3-r4 (mm)0.8
a (mm)54
e0.37
Y01.8
k1.61
Y11.8
Y22.7
D1 (mm)142
CF (lbs)15962
Cfa (lbs)5665
PackageQTY1
UOMEA
This configuration features huge bore sizes suited for metal manufacturing rolling mill stands, and mining machinery. They support massive radial and axial loads and resist axial forces in both directions. This design reduces installation complexity by having a single common inner race that ensures precise positioning across all rollers. An essential feature of this configuration is that when the shaft thermally expands lengthwise, the axial preload forces decrease in the bearing. It will run at a lower temperature than a face-to-face bearing in the same situation. It is much easier to use in industrial settings where operating temperatures vary significantly. The bearing construction can be customized to meet specific technical requirements.
