Large Back to Back Double Row Tapered Bearing: BT2B328383HA1

Large Back to Back Double Row Tapered Bearing: BT2B328383HA1

Large Back to Back Double Row Tapered Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

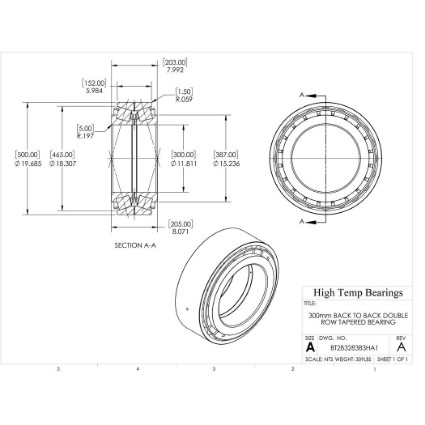

CAD
Specifications:
Attribute nameAttribute value
ConstructionDouble Row Back to Back
Shaft Size300mm
D (mm)500
B (mm)203
C (lb)672632
C0 (lb)1146531
Pu (lb)95544
d1 (mm)387
Weight(lbs)309
Code410229
Bore (mm)300
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
P (mm)152
r1-r2 (mm)5
r3-r4 (mm)1.5
a (mm)205
e0.4
Y01.6
k1.43
Y11.7
Y22.5
D1 (mm)465
CF (lbs)165235
Cfa (lbs)66769
PackageQTY1
UOMEA
This configuration features huge bore sizes suited for metal manufacturing rolling mill stands, and mining machinery. They support massive radial and axial loads and resist axial forces in both directions. This design reduces installation complexity by having a single common inner race that ensures precise positioning across all rollers. An essential feature of this configuration is that when the shaft thermally expands lengthwise, the axial preload forces decrease in the bearing. It will run at a lower temperature than a face-to-face bearing in the same situation. It is much easier to use in industrial settings where operating temperatures vary significantly. The bearing construction can be customized to meet specific technical requirements.
