Deep Groove, Single Row, High Temperature 280 °C, C5, Shielded Ball Bearing
$760.42

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction. Shielded units are not well protected from liquids, vapors, or fine dust. KX series ball bearings are designed to significantly outlast all other equivalently sized ball bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Series6300
Code102009
SealsShields
Construction536F Shields
DutyHigh Temperature
Shaft Size75mm
Material52100

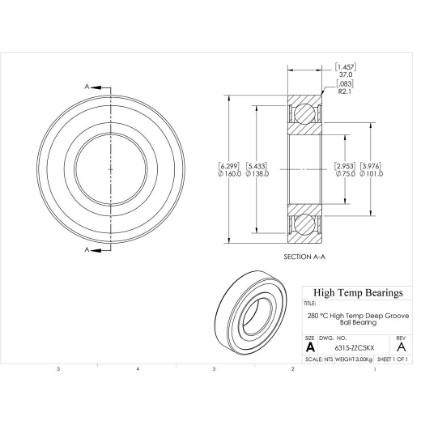

Dimensions

Attribute nameAttribute value
Bore (mm)75
D (mm)160
B (mm)37
r (mm)2.1
D2 (mm)138
d1 (mm)101

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)2
Da (mm)148
damin (mm)87

Calculation Data

Attribute nameAttribute value
Nmax (RPM)Limiting speed320
krMinimum radial load factor30
kaMinimum axial load factor0.5
foCalculation factor13
C (lb)Dynamic load capacity26752
C0 (lb)Static load capacity17198
Pu (lb)Fatigue load limit674

Mass

Attribute nameAttribute value
Weight(lbs)6.61

Tolerance Class

Attribute nameAttribute value
ClearanceC5

Safe Loads

Attribute nameAttribute value
Tmax (F)536
Tmin (F)-40
