Deep Groove, Full Complement, Single Row, High Temperature 800 °C Si3N4 Ball Bearing
$2,987.45

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

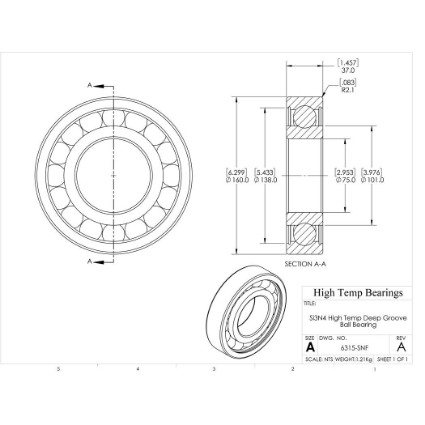

CAD

Specifications:

Description

Silicon Nitride has a good combination of mechanical, thermal, and electrical properties. It is extremely hard and has exceptional thermal shock, impact resistance, and high-temperature capabilities, with high creep, oxidation, and wear resistance but is exceptionally light in weight. Its low thermal and electrical conductivity is especially useful in applications where corrosion, electric or magnetic fields prohibit the use of metals. It is an excellent choice when high-temperature and high-load abilities are needed. However, it has a very low rate of thermal expansion that must be accommodated to prevent excessive tensile stress on the inner race.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code102005
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Construction1472F Open
DutyHigh Temperature
SealsNone
SeriesSi3N4
Shaft Size75mm
MaterialSi3N4

Dimensions

Attribute nameAttribute value
Bore (mm)75
D (mm)160
B (mm)37
r (mm)2.1
D2 (mm)138
d1 (mm)101

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)2
Da (mm)148
damin (mm)87

Calculation Data

Attribute nameAttribute value
Nmax (RPM)Limiting speed2450
krMinimum radial load factor30
kaMinimum axial load factor0.5
foCalculation factor13
C (lb)Dynamic load capacity6351
C0 (lb)Static load capacity4339

Mass

Attribute nameAttribute value
Weight(lbs)2.67

Tolerance Class

Attribute nameAttribute value
Clearance0.0005"

Safe Loads

Attribute nameAttribute value
Tmax (F)1472
Tmin (F)-112
